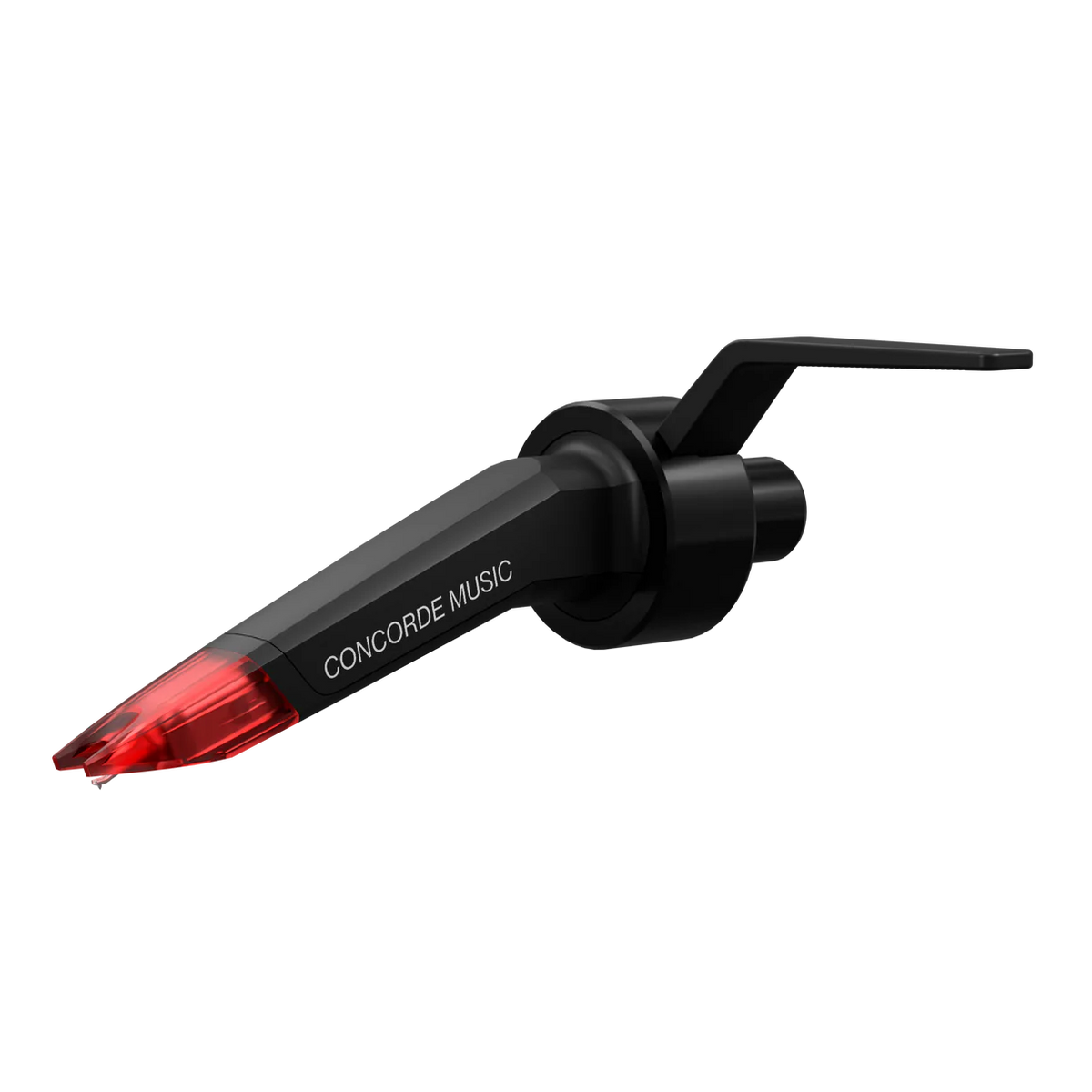

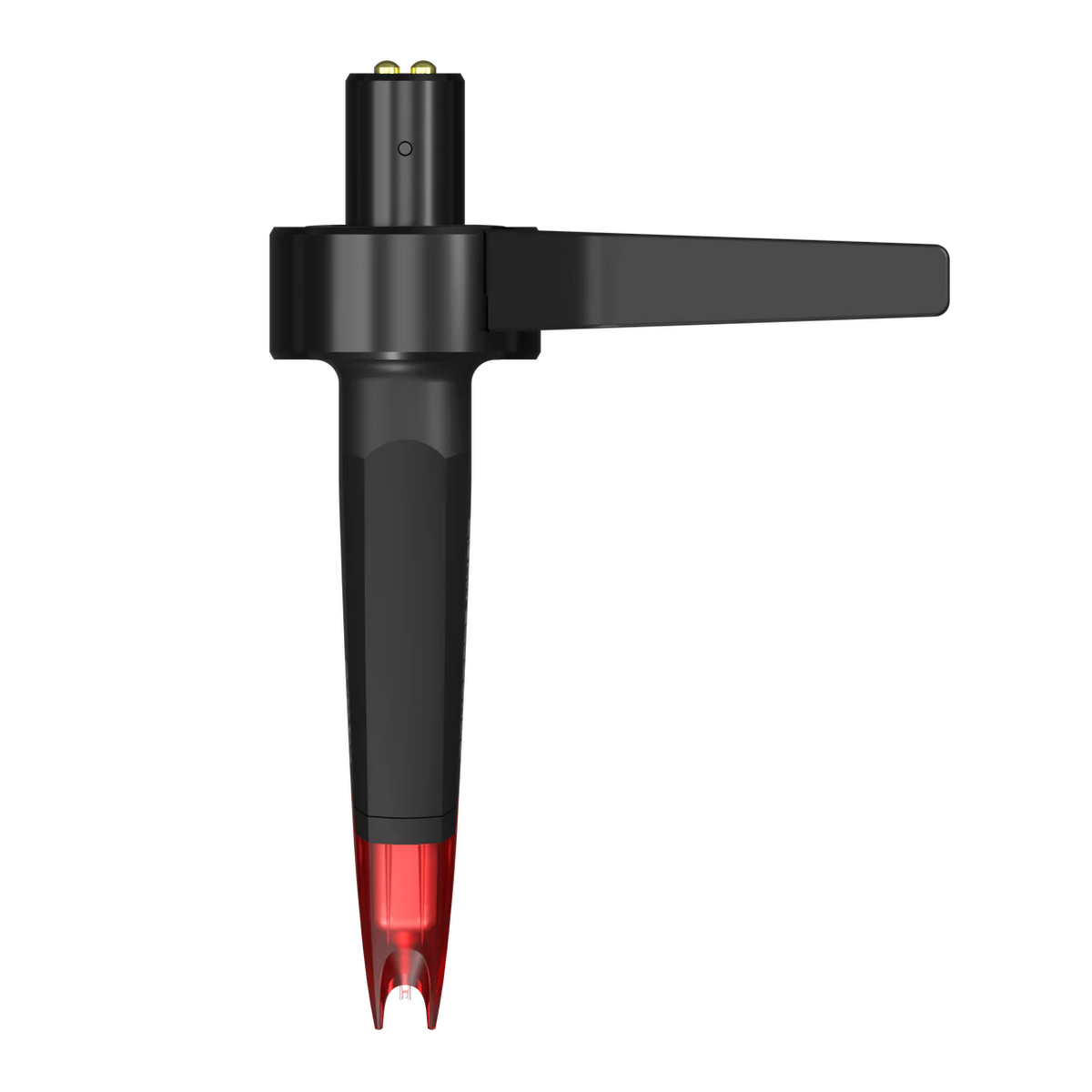

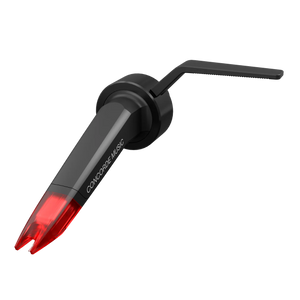

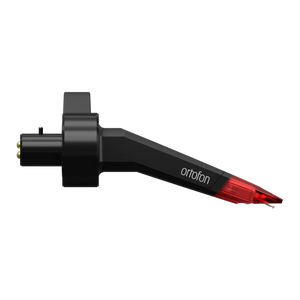

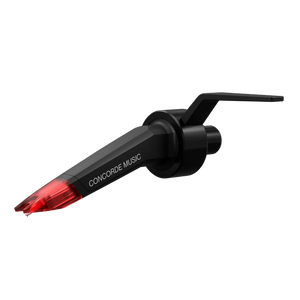

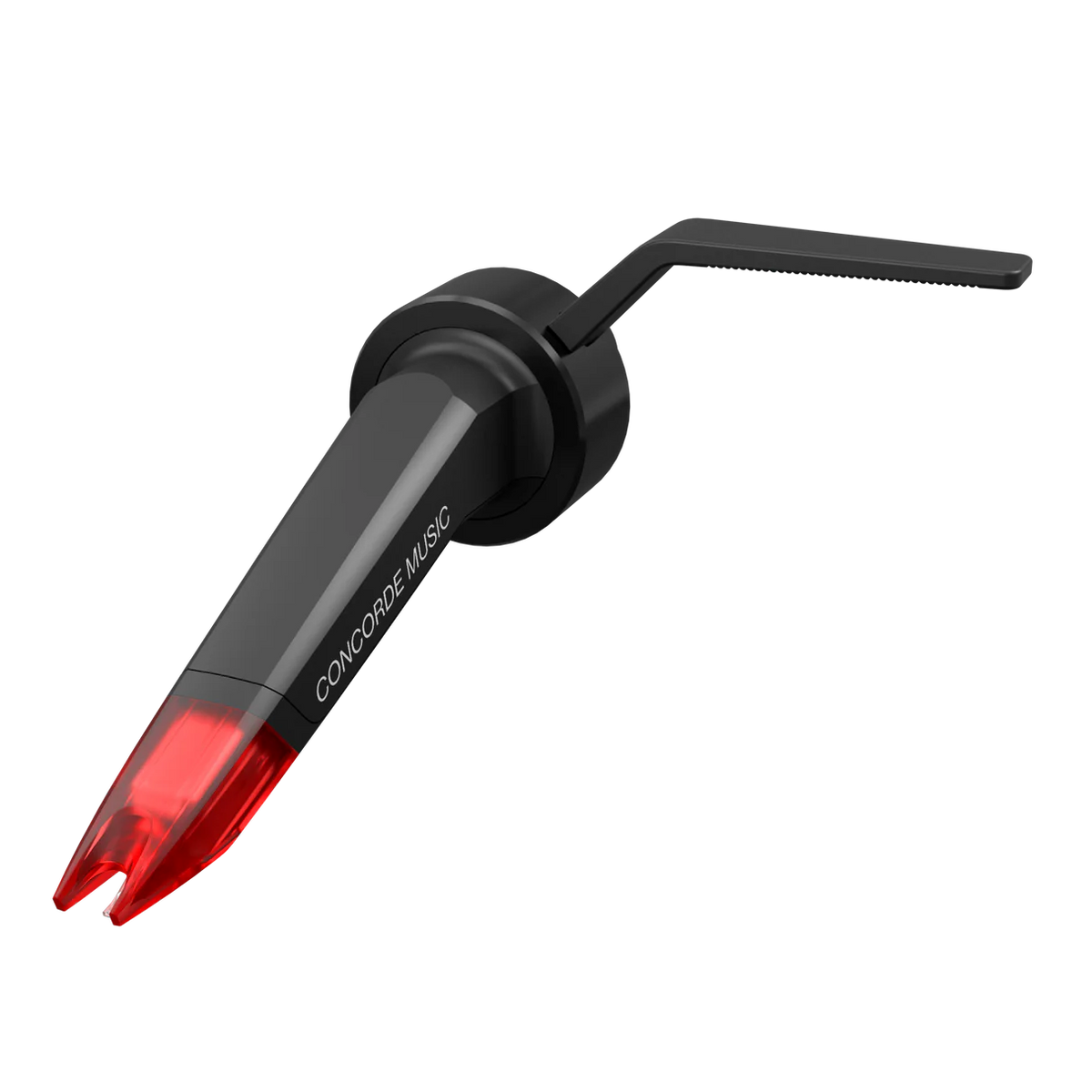

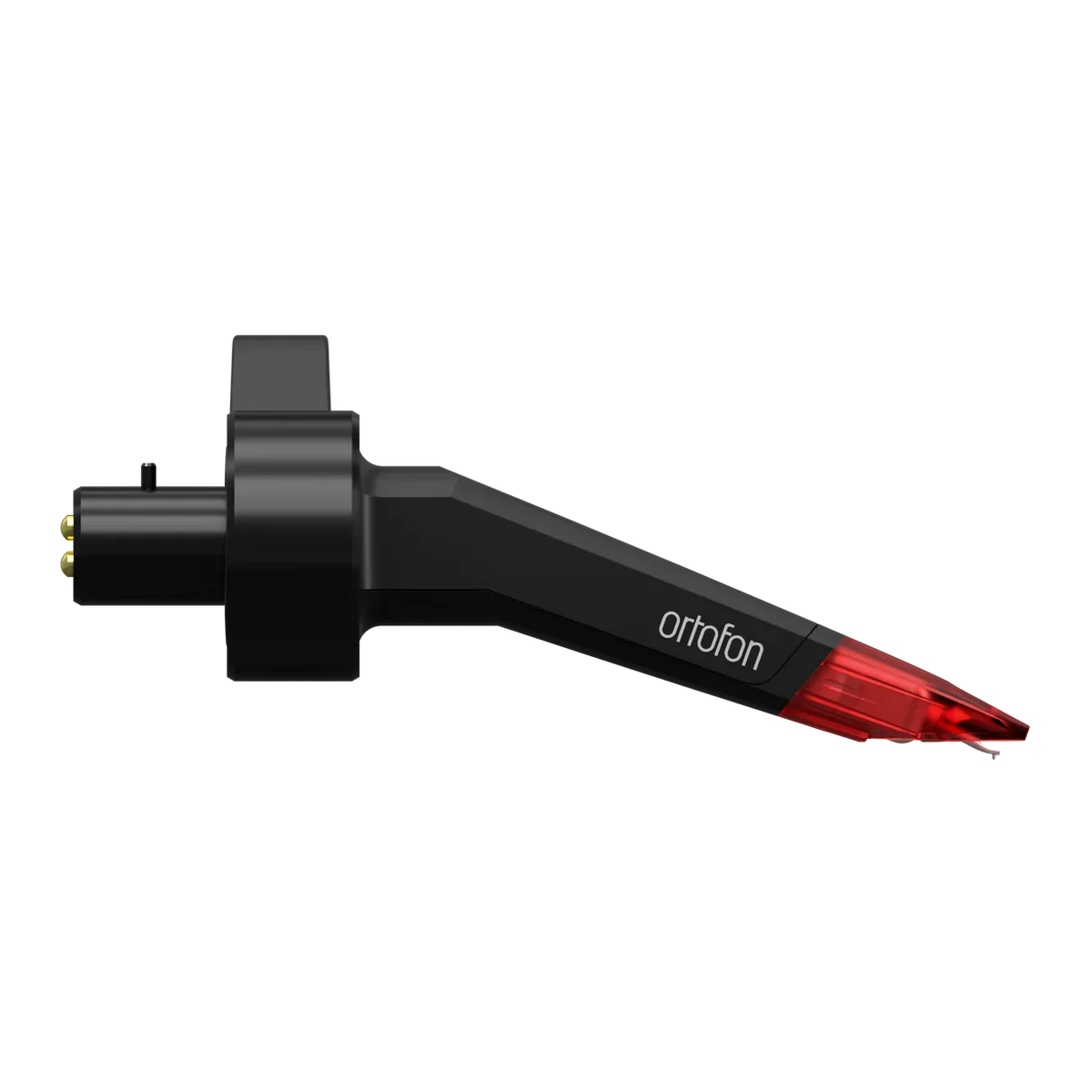

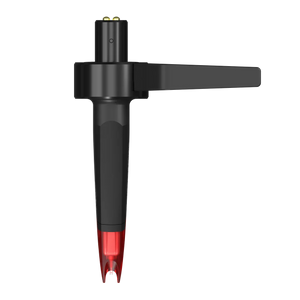

Ortofon - Concorde Music Red

Enquire for Price

Ortofon - Concorde Music Red

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Stylus

Precision in every groove

The Concorde Music Red features an Elliptical diamond polished to the highest standards of the industry, mounted on a premium aluminum cantilever. This ensures the best possible transmission of the vinyl record groove modulations picked up by the diamond.

Specifications

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    6mV
  • Channel seperation at 1 kHz
    22 dB
  • Channel seperation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    +3 / -1 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    15 µm/mN
  • Stylus type
    Elliptical diamond on Aluminium cantilever
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force, recommended
    1.8 g
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.27 kΩ
  • Cartridge colour
    Black/Red
  • Cartridge weight
    18 g
  • Recommended load resistance
    47 kΩ
  • Internal inductance
    815 mH
  • Recommended load capacitance
    150-300 pF
