Little Diamond

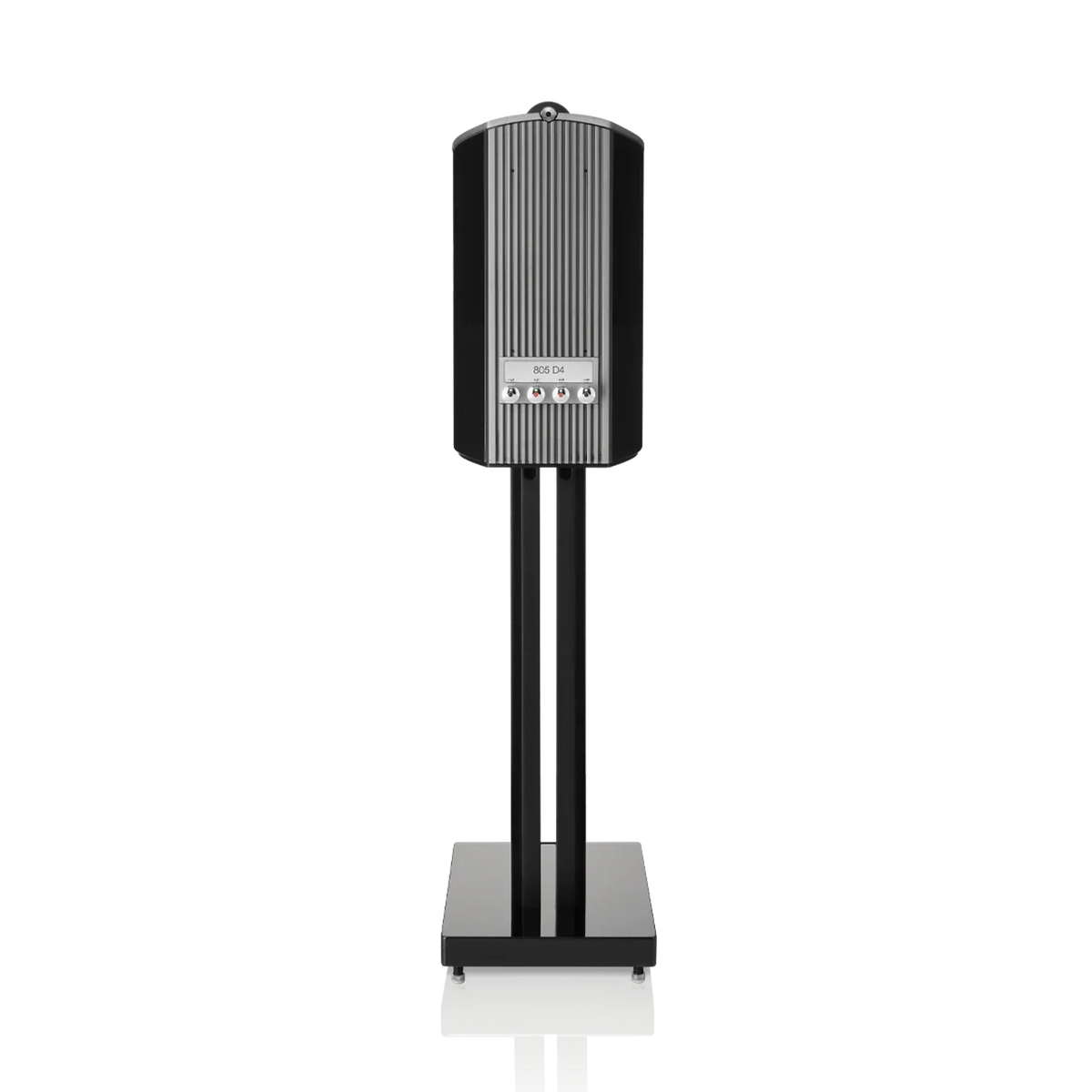

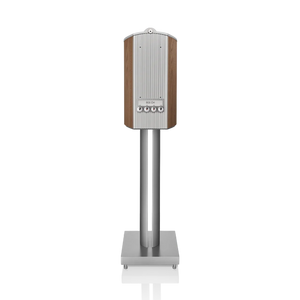

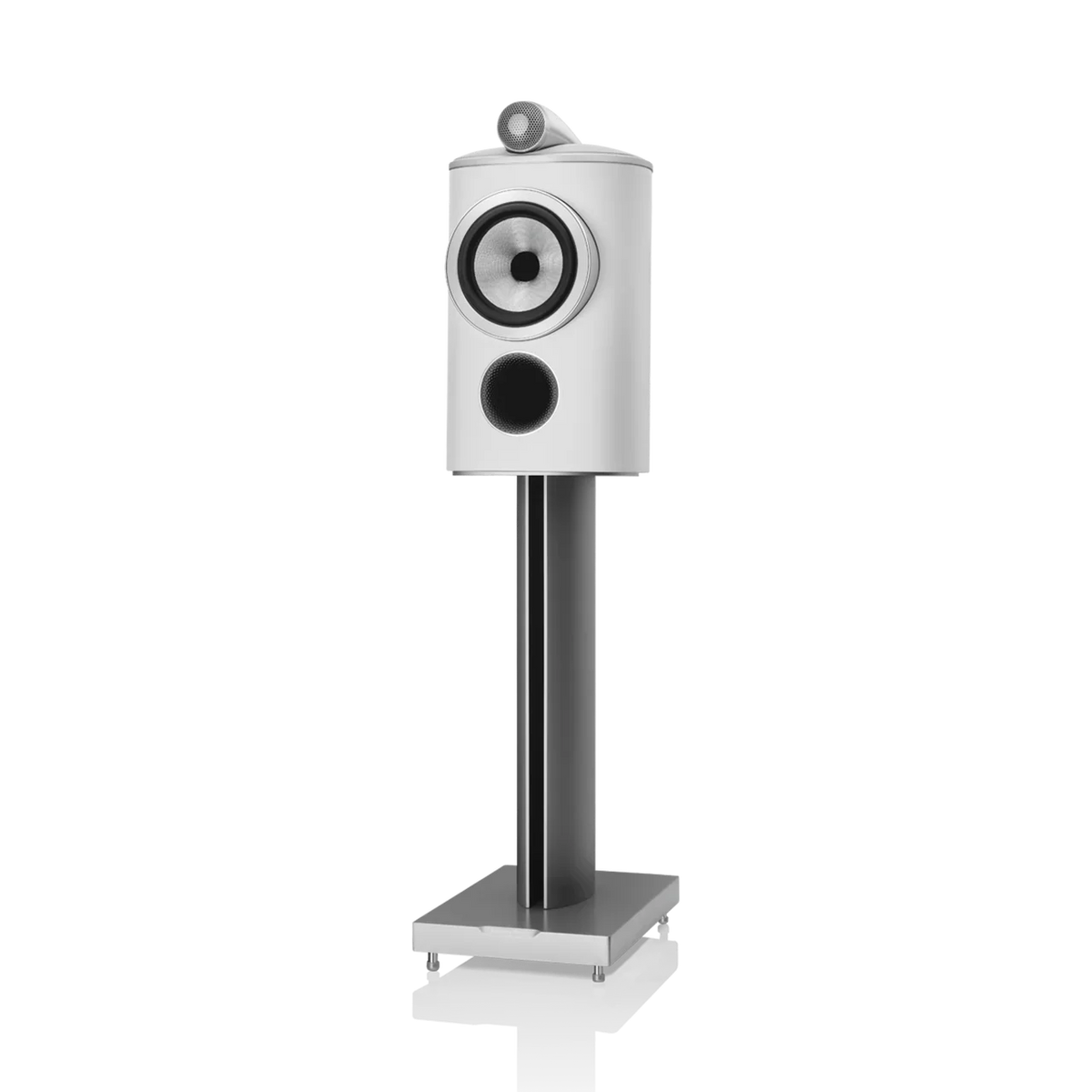

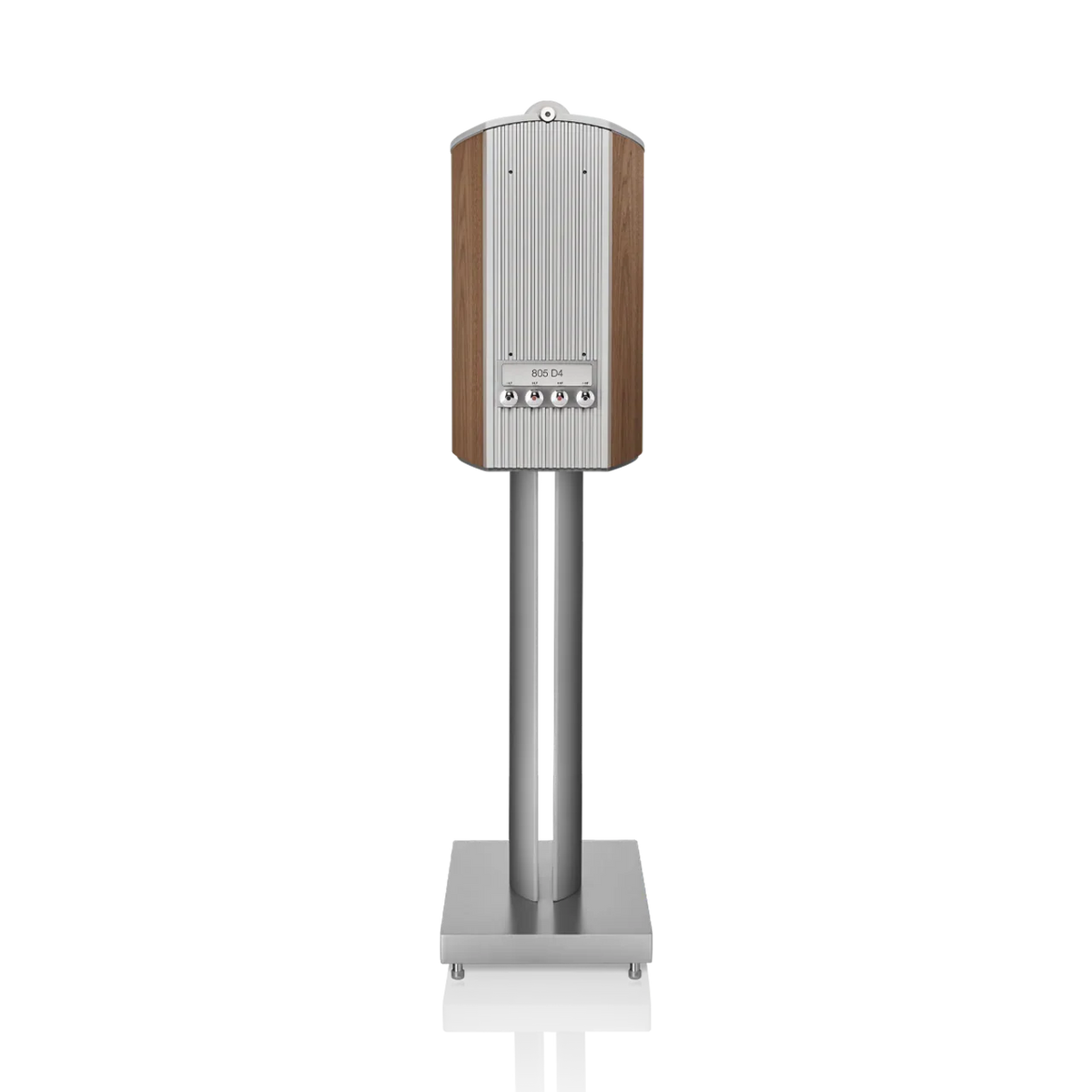

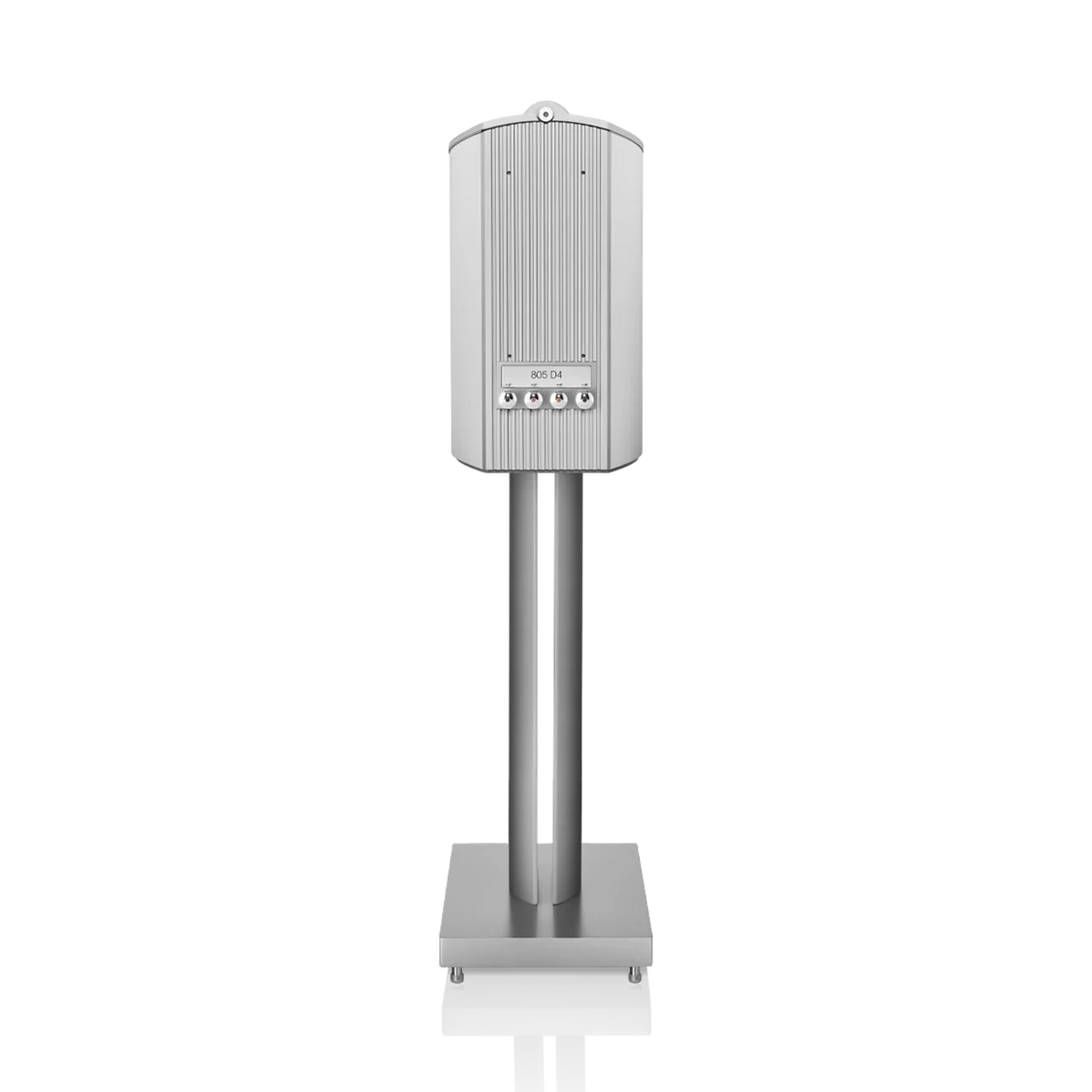

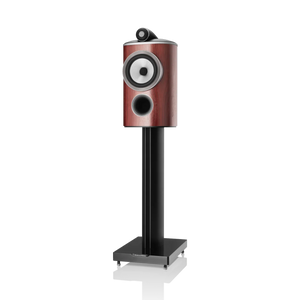

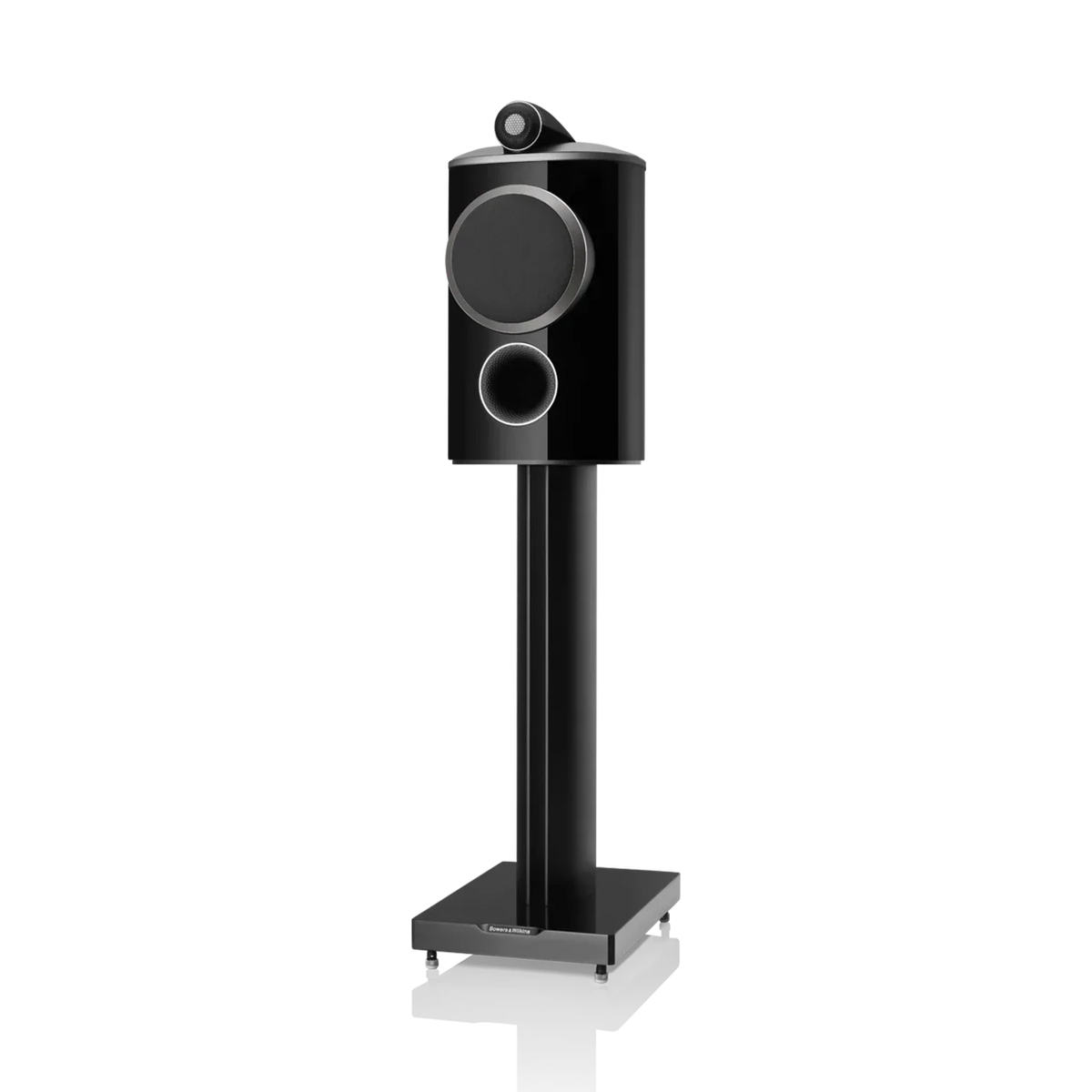

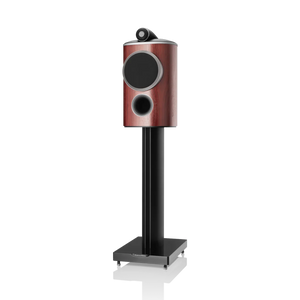

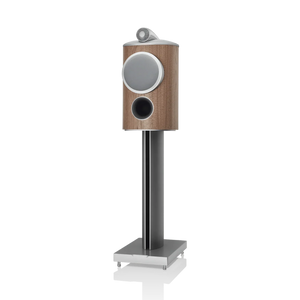

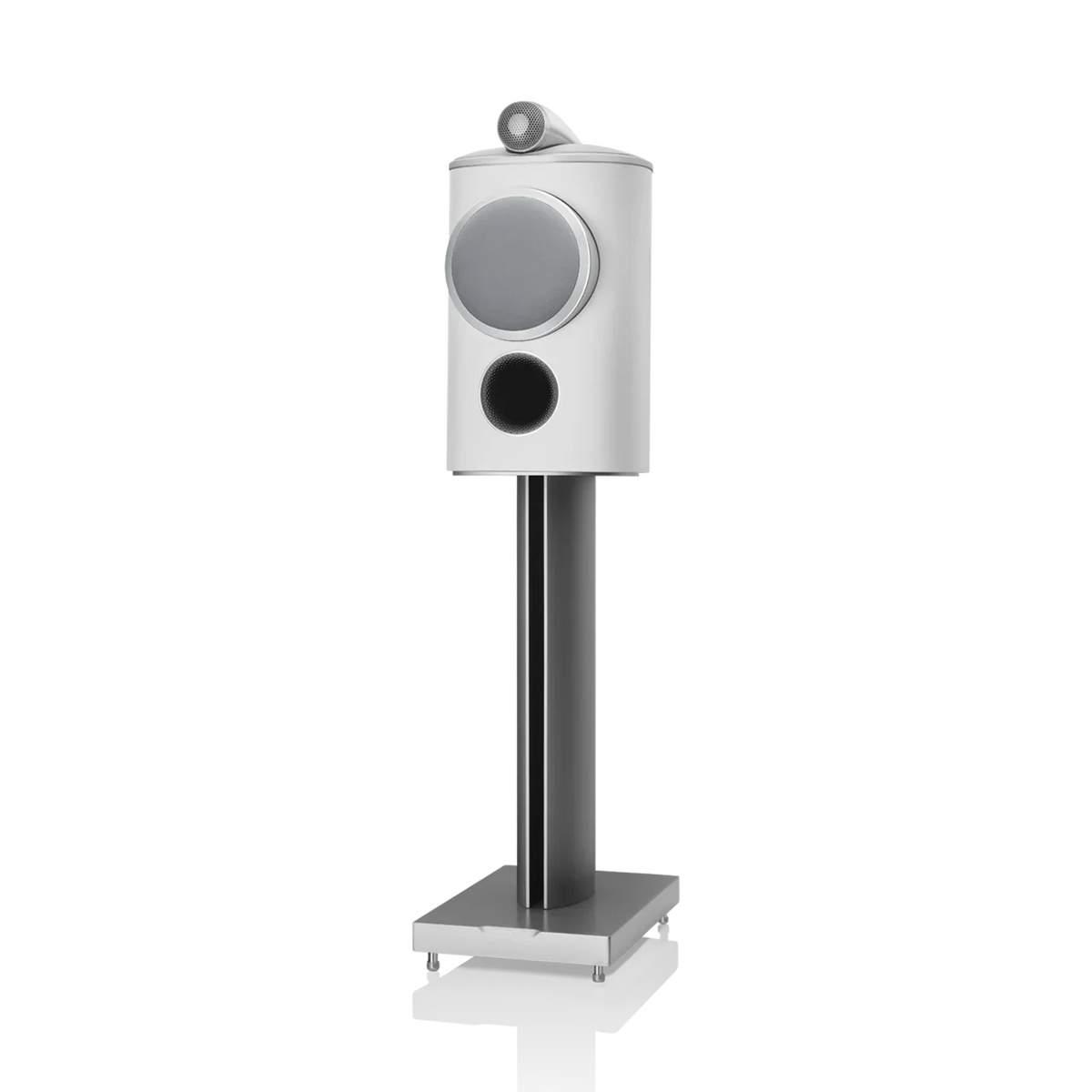

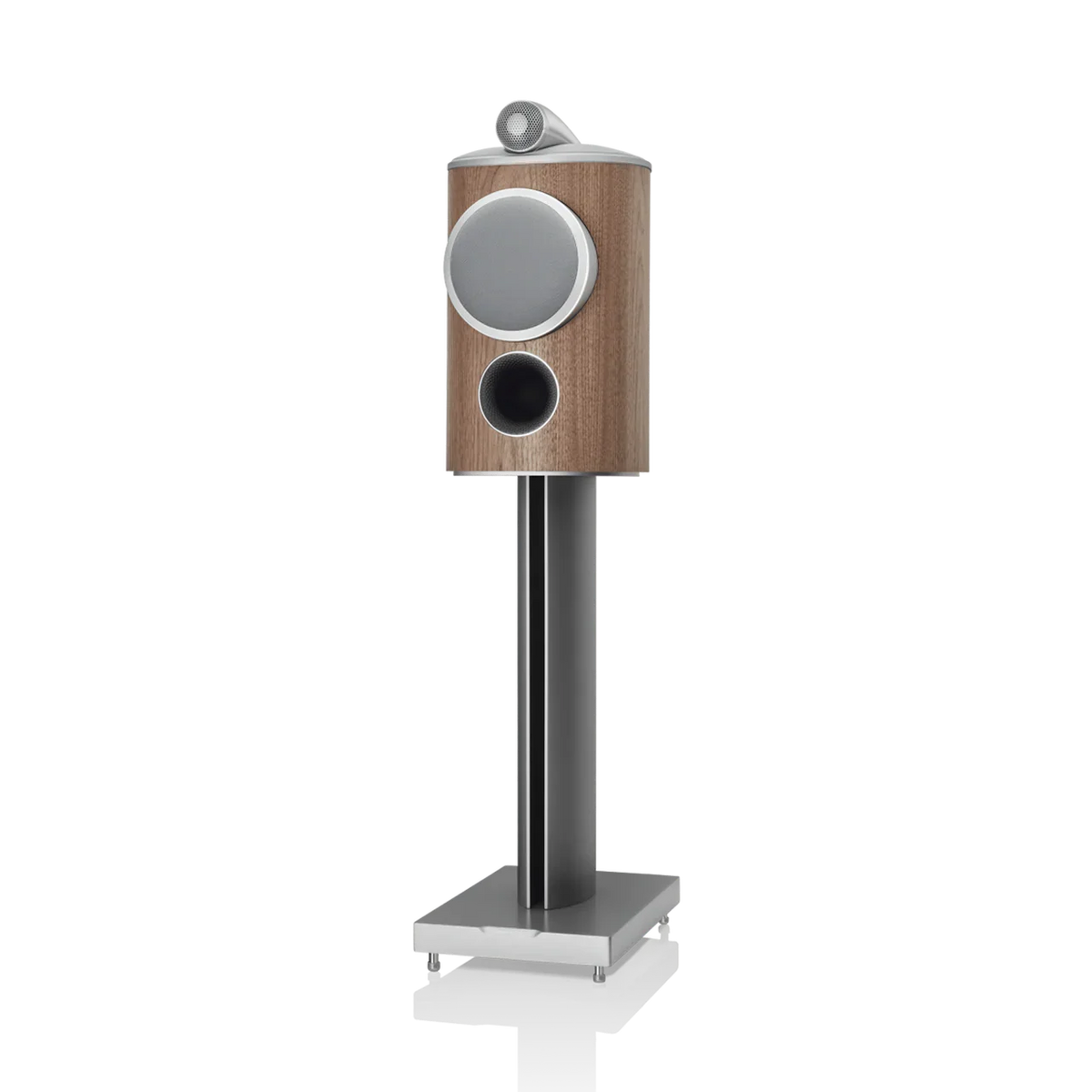

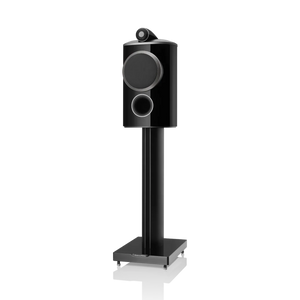

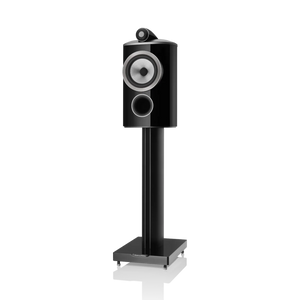

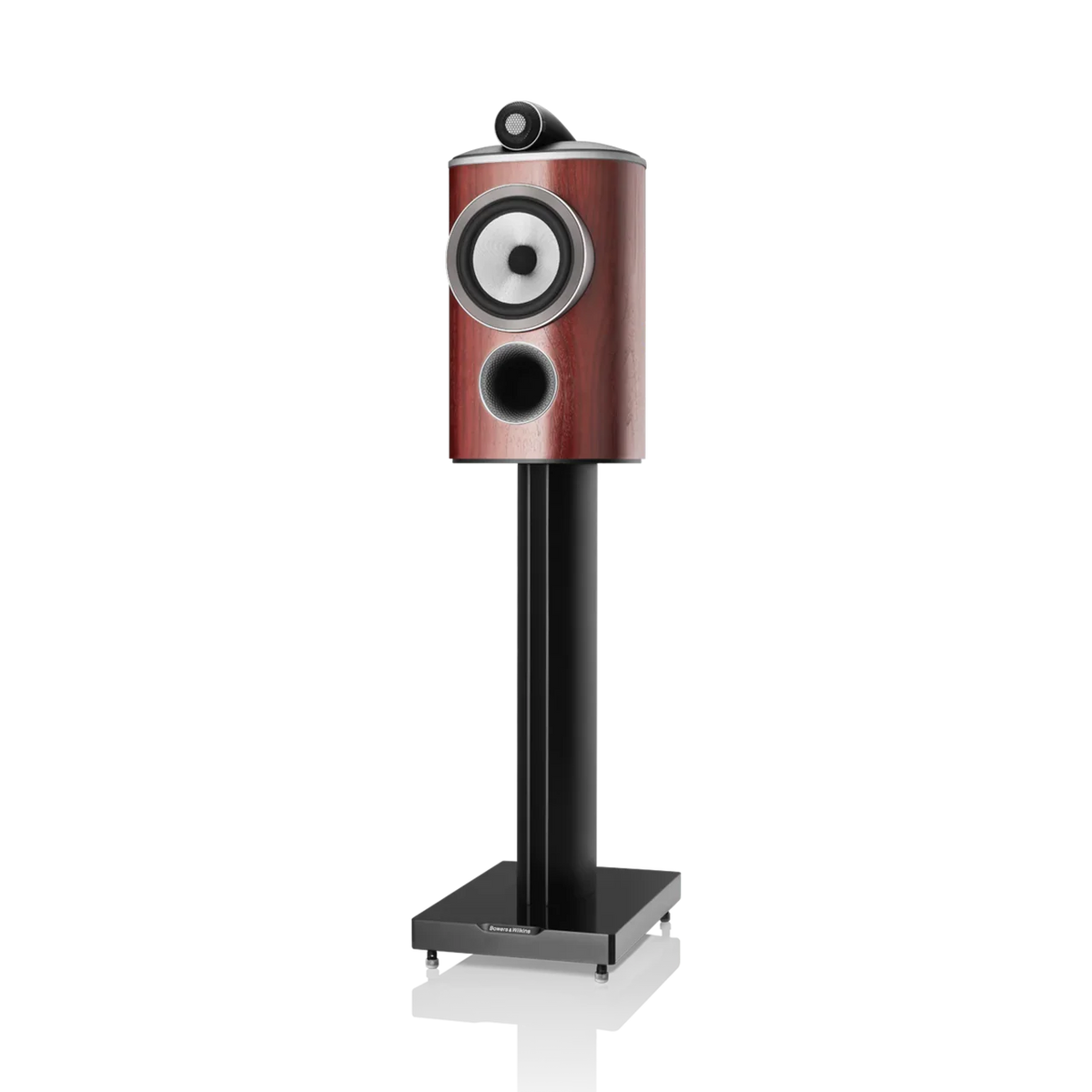

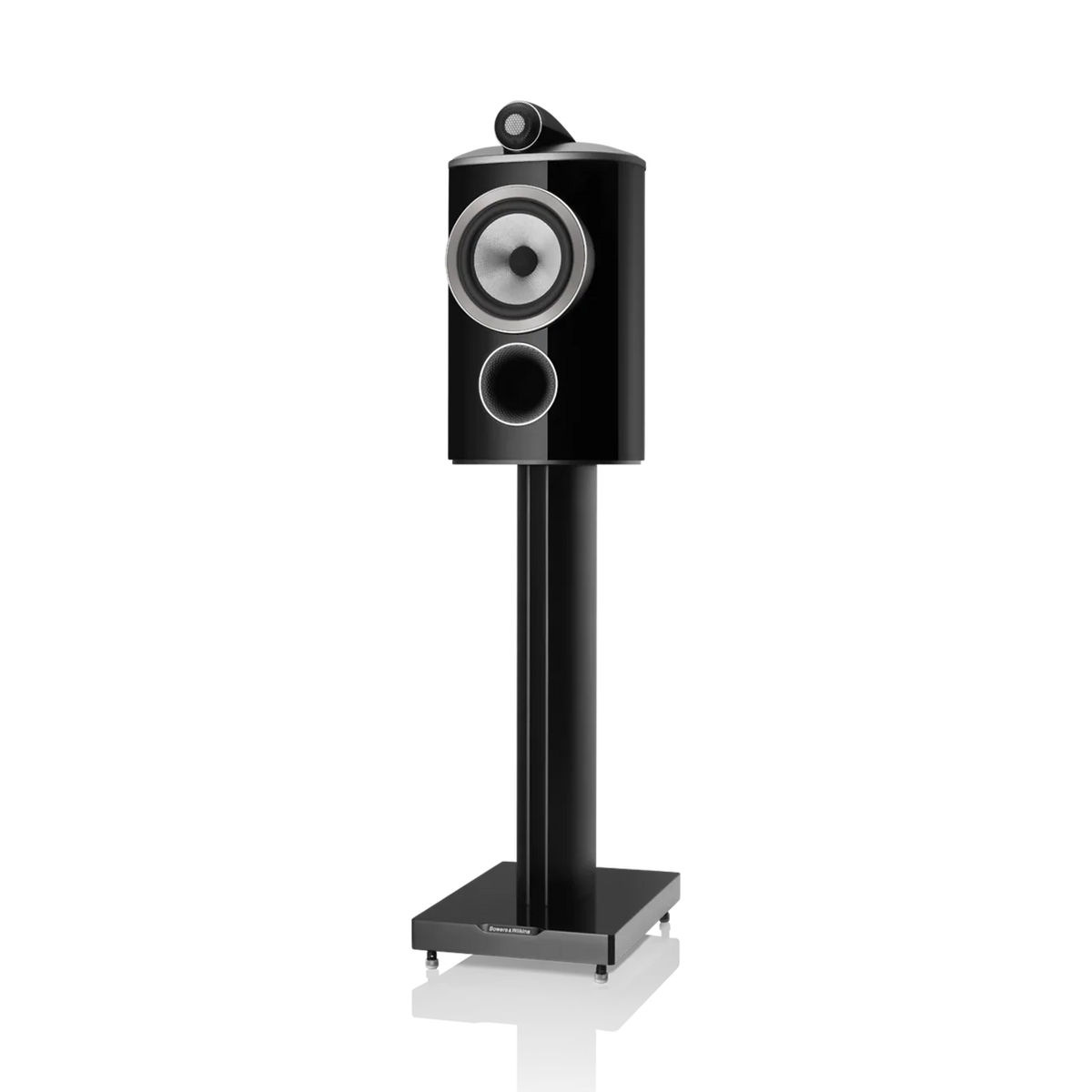

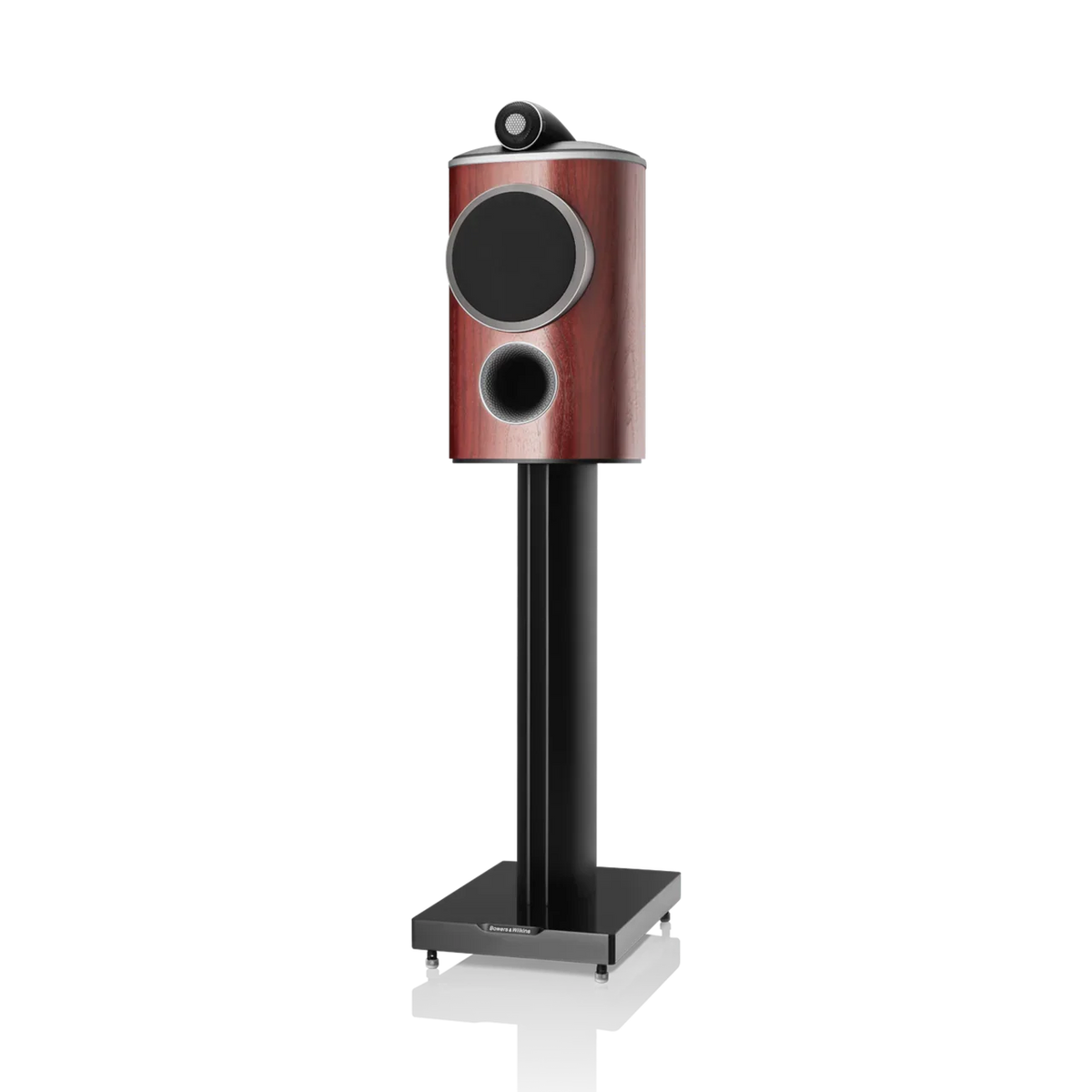

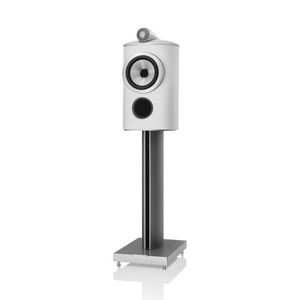

805 D4 might be smaller than its tower speaker siblings, but it’s no lightweight: its beautifully constructed Reverse-Wrap cabinet, stiff aluminum bass pods and 165mm (6.5-in) Continuum™ mid-bass cone afford it exceptional bass extension and scale for a relatively compact speaker.
Solid Body Tweeter assembly
Our newest Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, producing an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.
Feature Set Includes:
- Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone bass/mid
Matrix™
Anti-Resonance plug
Flowport - Description 2-way vented-box system
-
Drive units 1x ø25mm (1in) Diamond dome high-frequency
1x ø165mm (6.5in) Continuum cone bass midrange - Frequency range 34Hz to 35kHz
- Frequency response 42Hz to 28kHz (+/-3dB from reference axis)
- Sensitivity 88dB (on axis at 2.83Vrms at 1m)
-
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 20kHz - Nominal impedance 8Ω (minimum 4.6Ω)
- Recommended amplifier power 50W – 120W into 8Ω on un-clipped program
