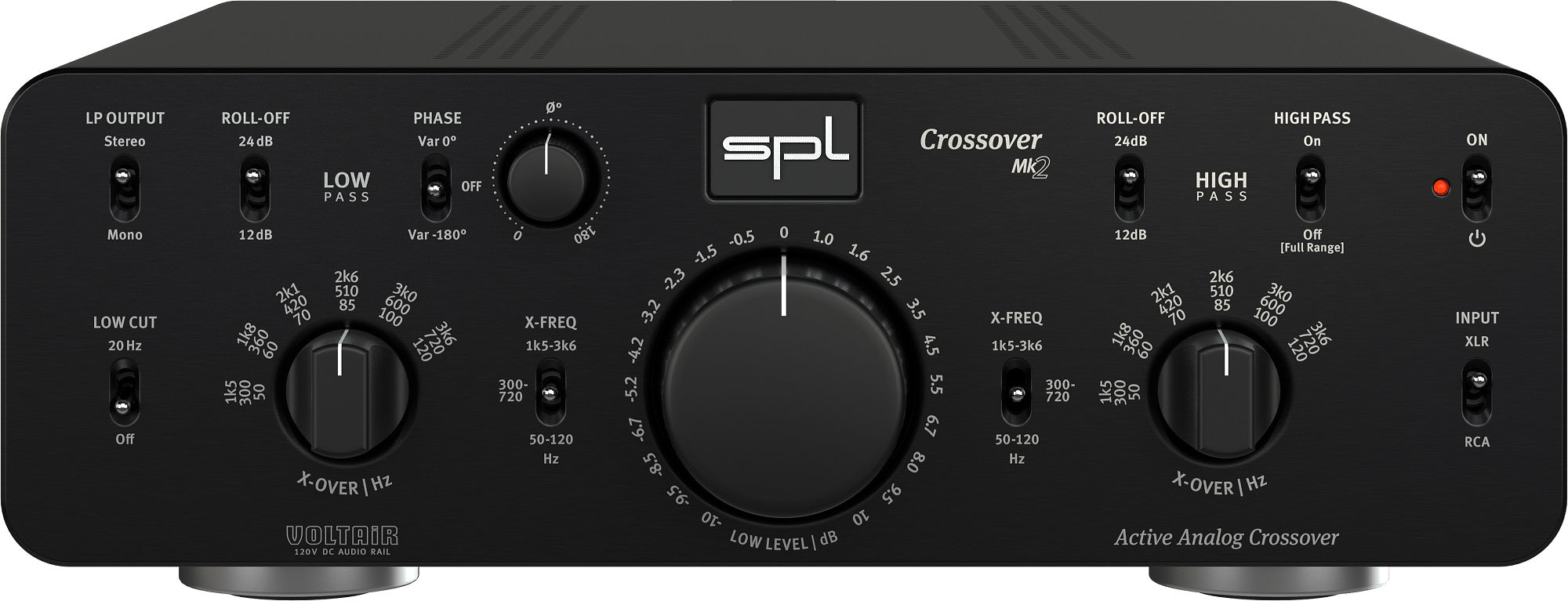

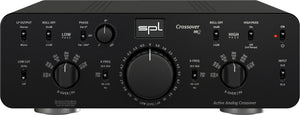

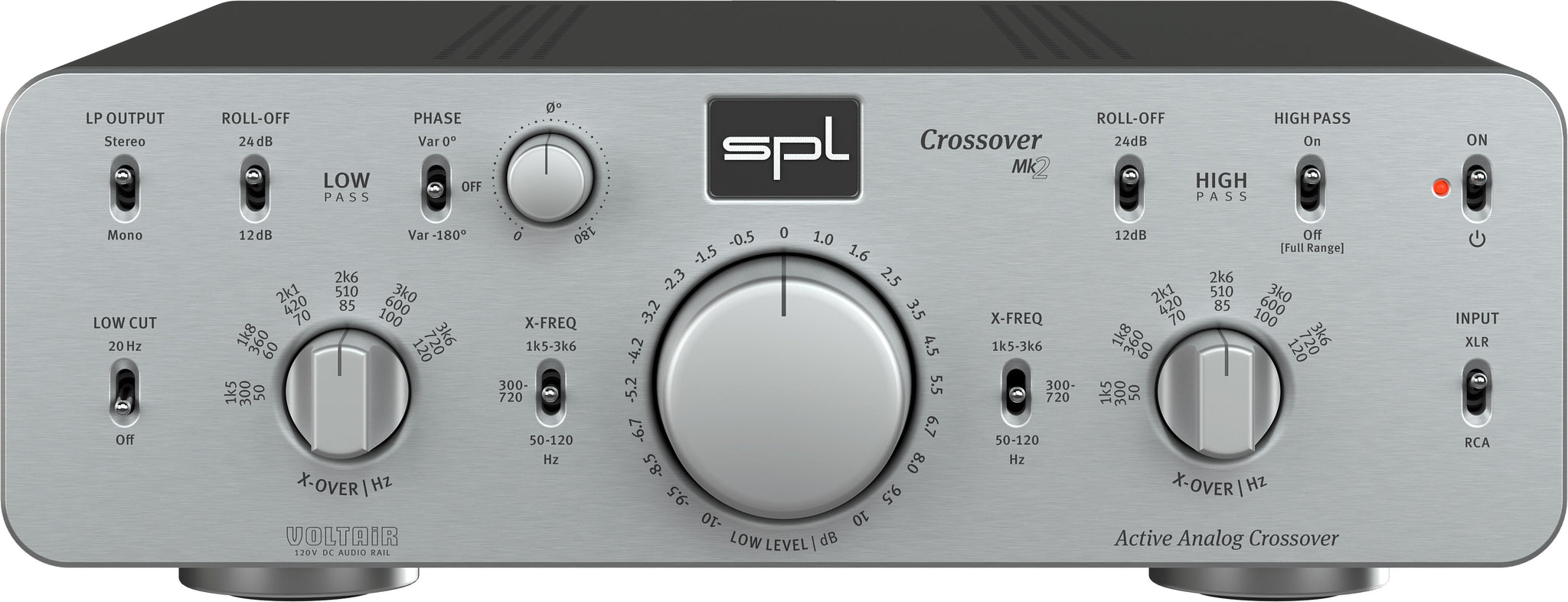

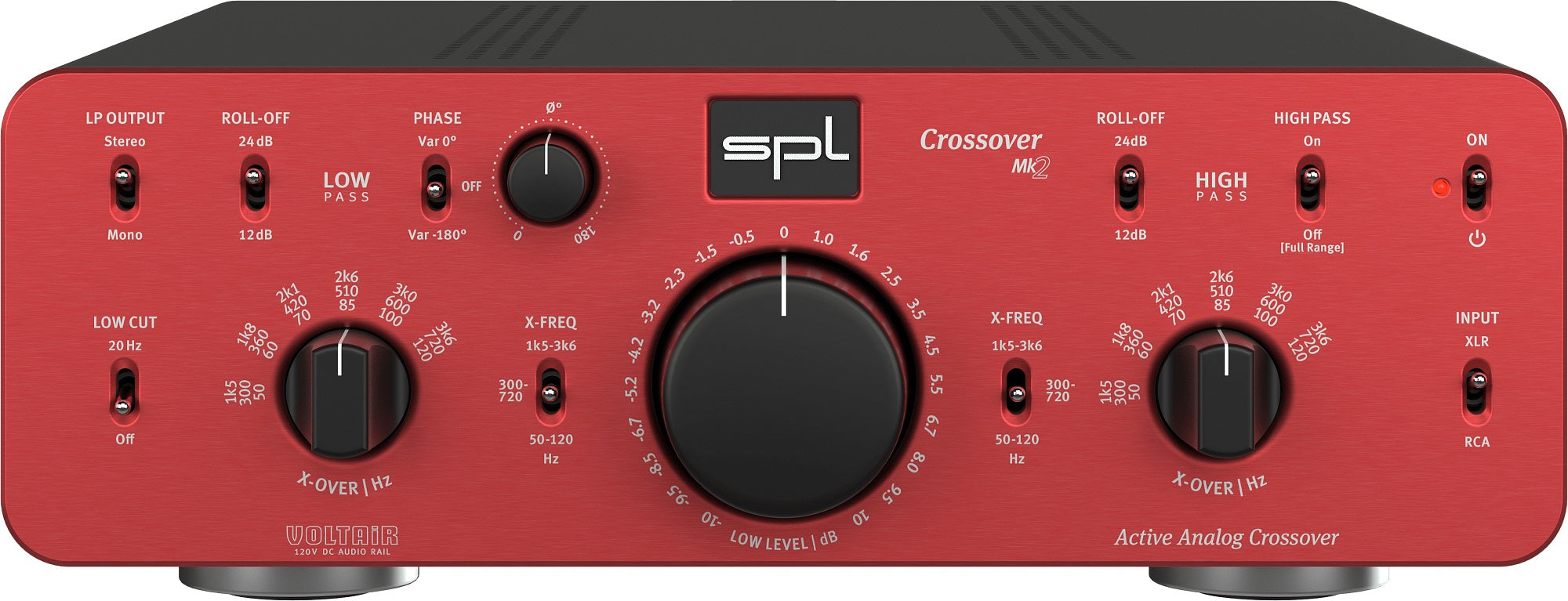

SPL - Crossover MK2  (Pre-Order)

The analog crossover in its second generation

The second generation of the SPL Crossover features even more crossover frequencies and an extended range of functions – making it the best and most versatile SPL crossover ever.

The perfect integration of bass loudspeakers or subwoofers can be difficult.
There are almost only digital crossovers for this purpose.
But who wants to convert back to digital in an analog high-end playback chain?

Our analog Crossover Mk2 sets the crossovers anew and rewards with outstanding listening pleasure – thanks to the SPL VOLTAiR technology.

Crossing over

The Crossover Mk2 is divided into two sections: The LOW PASS section for the bass loudspeaker or subwoofer (mono or stereo) and the HIGH PASS section for the top/main speakers.

The crossover frequencies for the LOW PASS and HIGH PASS can be set individually from 20 Hz to 3,6 kHz.

X-FREQ

With the respective three-position switch X-FREQ, the frequency range for the LOW PASS or HIGH PASS can be pre-set.
The following three options are possible:

Switch position, top – 1,5 kHz to 3,6 kHz
Switch position, center – 300 Hz to 700 Hz
Switch position, bottom – 50 Hz to 120 Hz

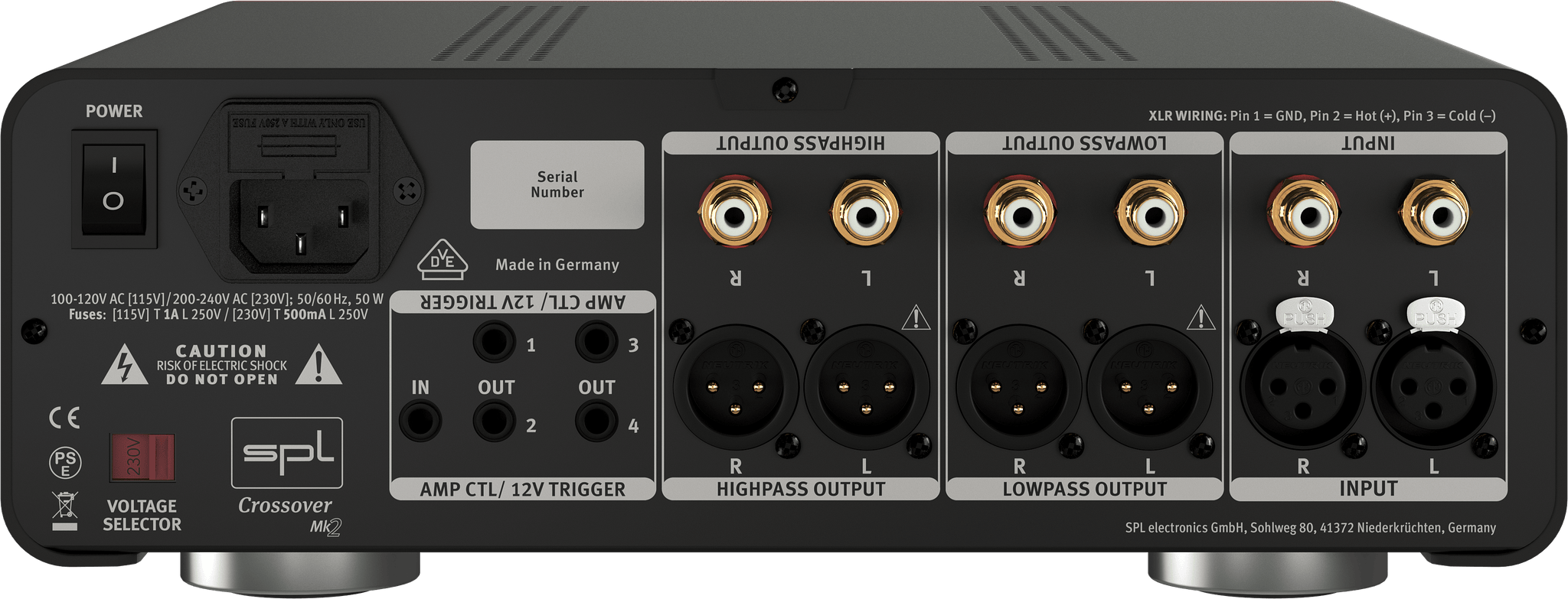

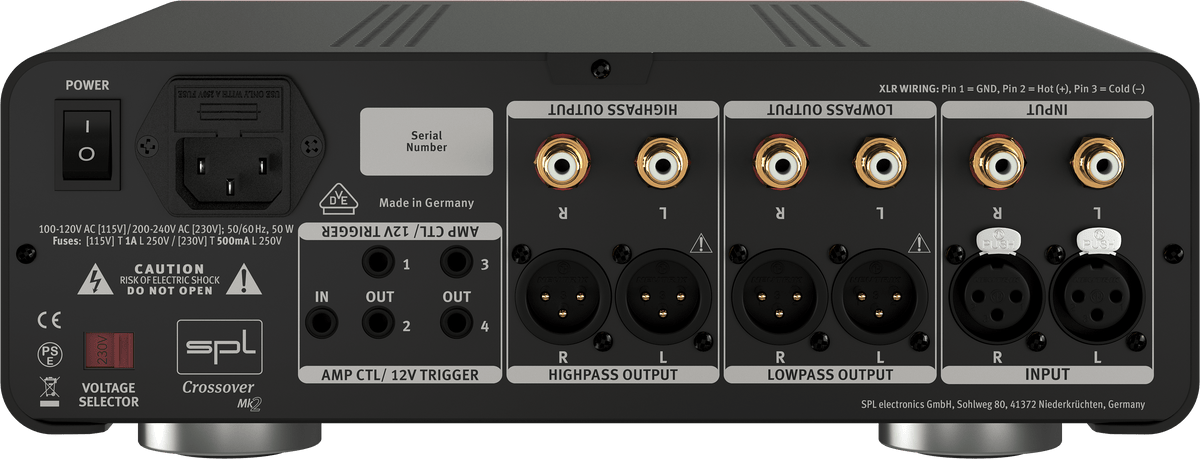

Analog Inputs & Output: XLR (balanced) and RCA

Maximum input & output gain
32.5 dB
Input impedance (RCA)
20
Input impedance (XLR)
20
Output impedance
75 Ω
Common mode rejection (XLR)
82 dBu
Frequency range (-3 dB)
10 Hz – 100 kHz
Crosstalk (1 kHz)
-70 dB
THD (0 dBu, 1 kHz, HIGHPASS filter on)
0.0008 %
THD (0 dBu, 30 Hz, LOWPASS filter on)
0.0009 %
Noise (A-weighted, HIGHPASS output)
-106 dBu
Noise (A-weighted, LOWPASS output)
-105 dBu
Dynamic range (HIGHPASS output)
138 dB
Dynamic range (LOWPASS output)
137 dB
