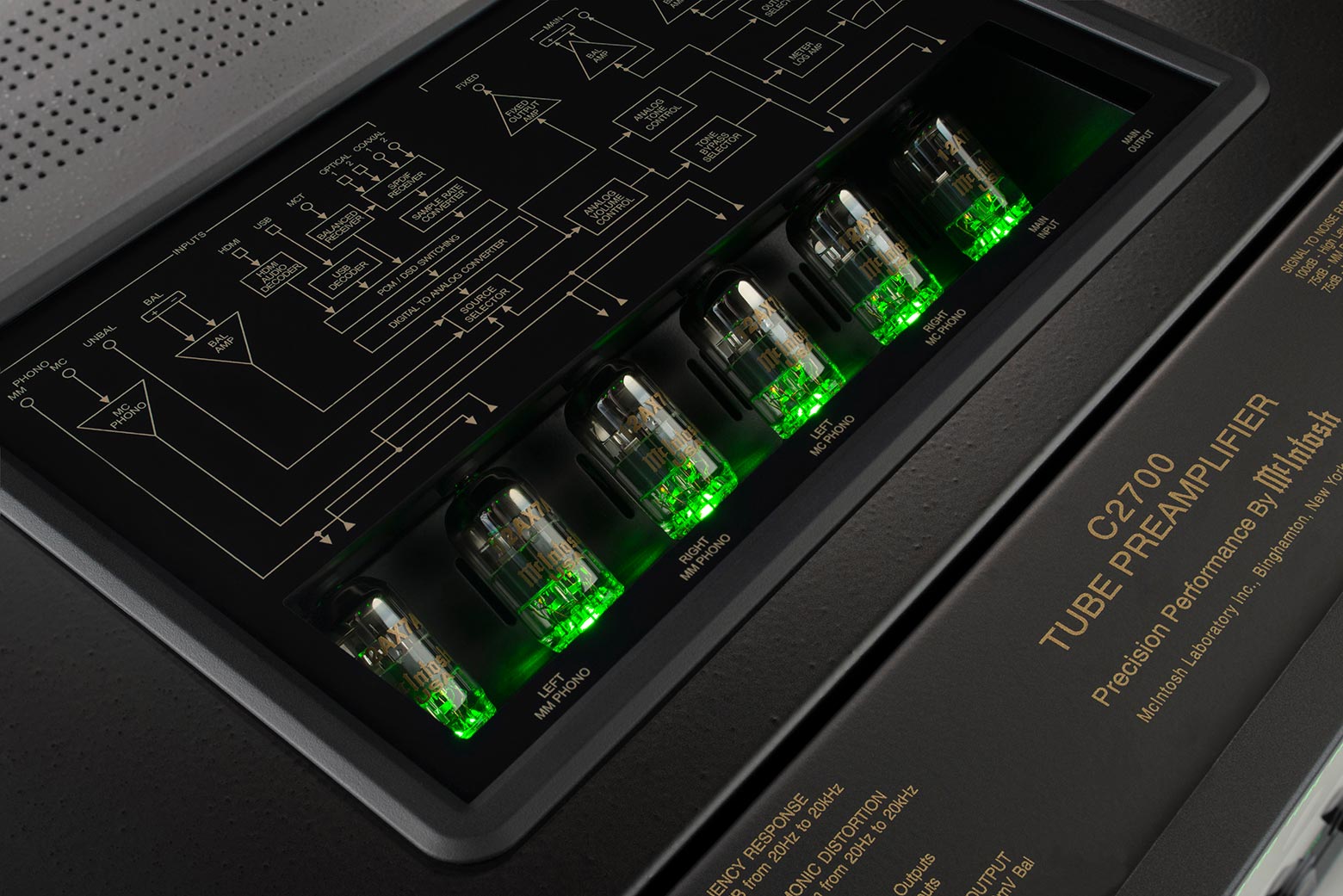

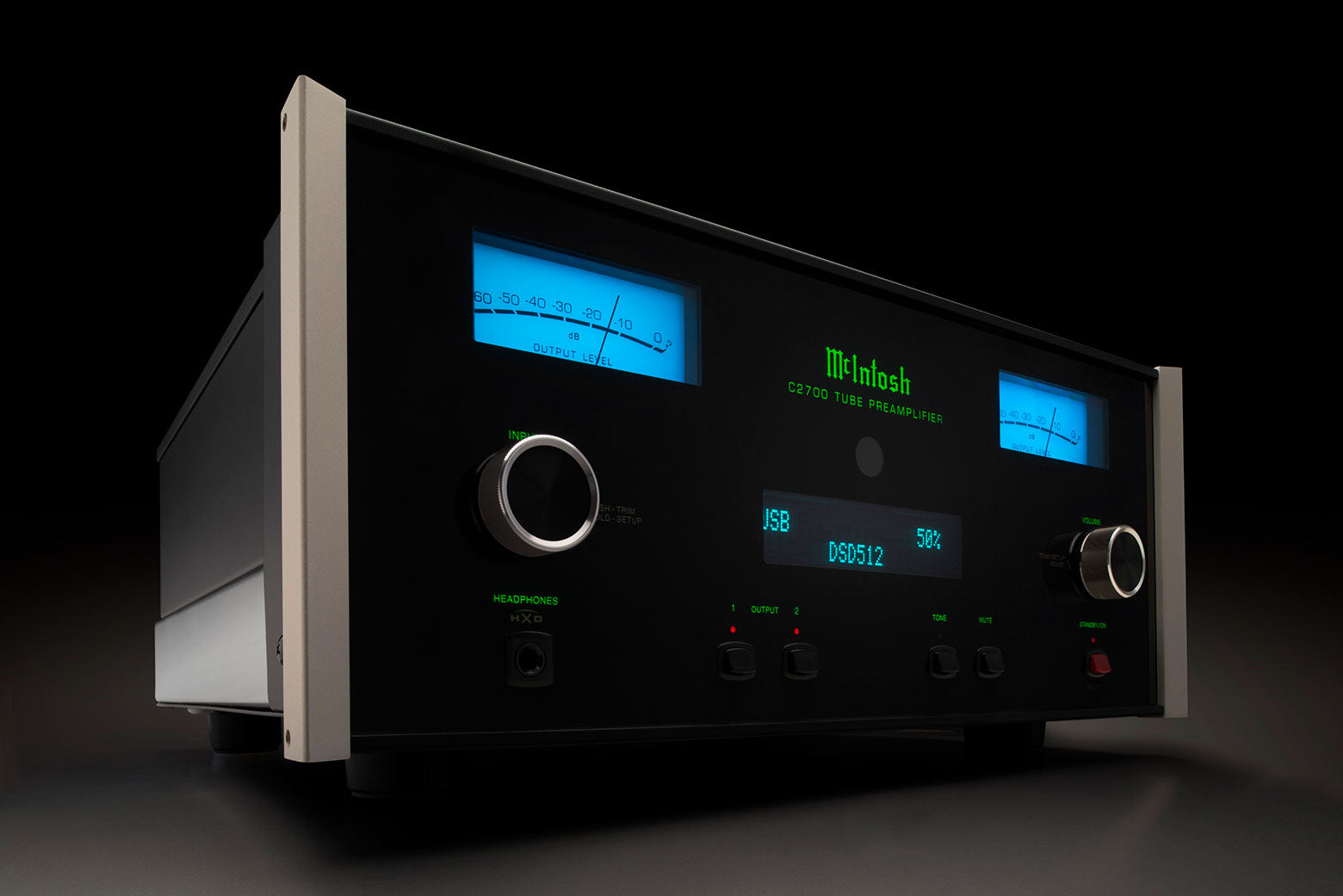

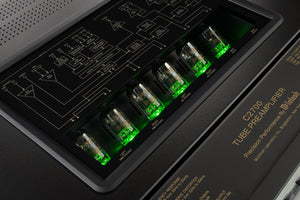

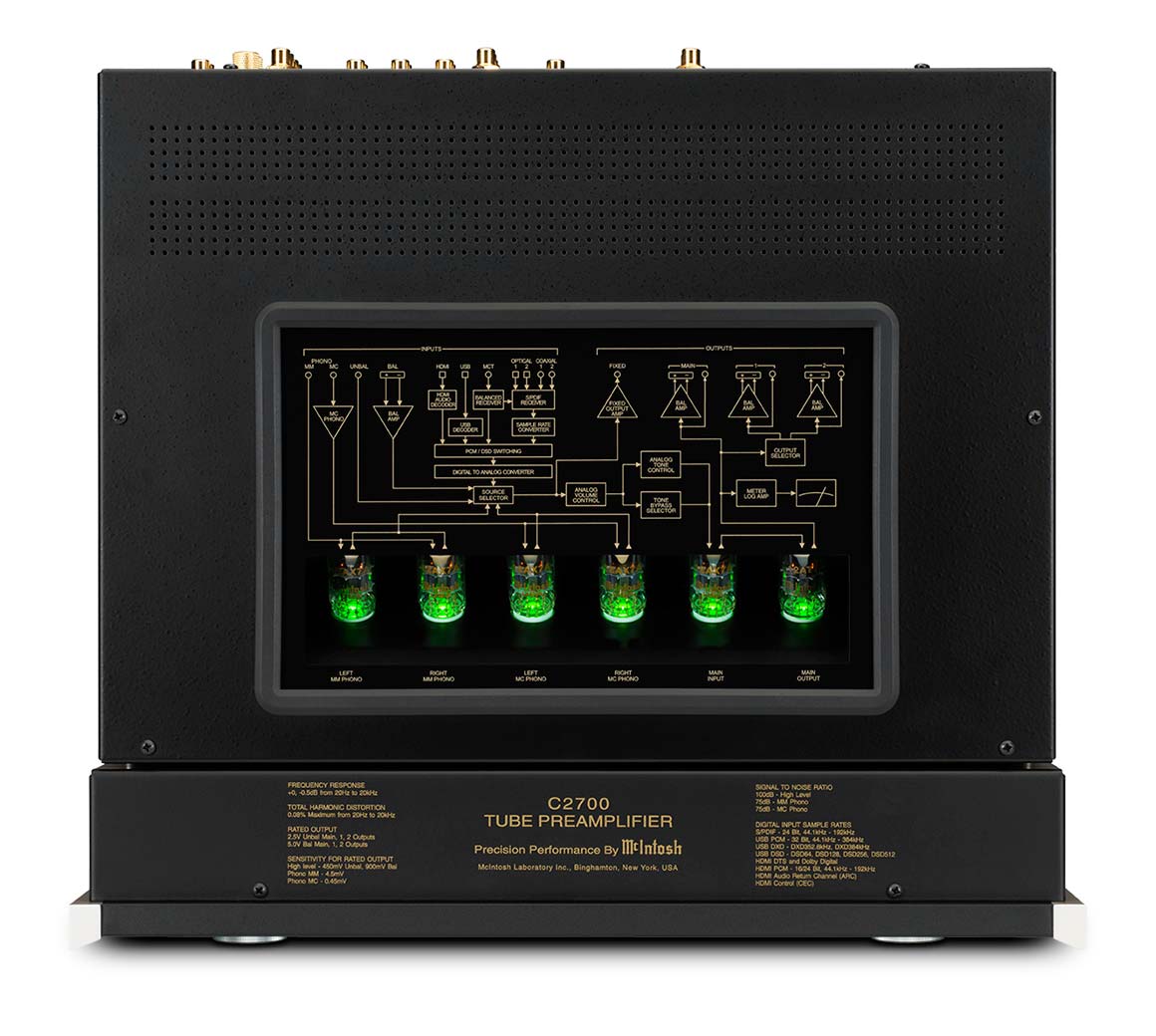

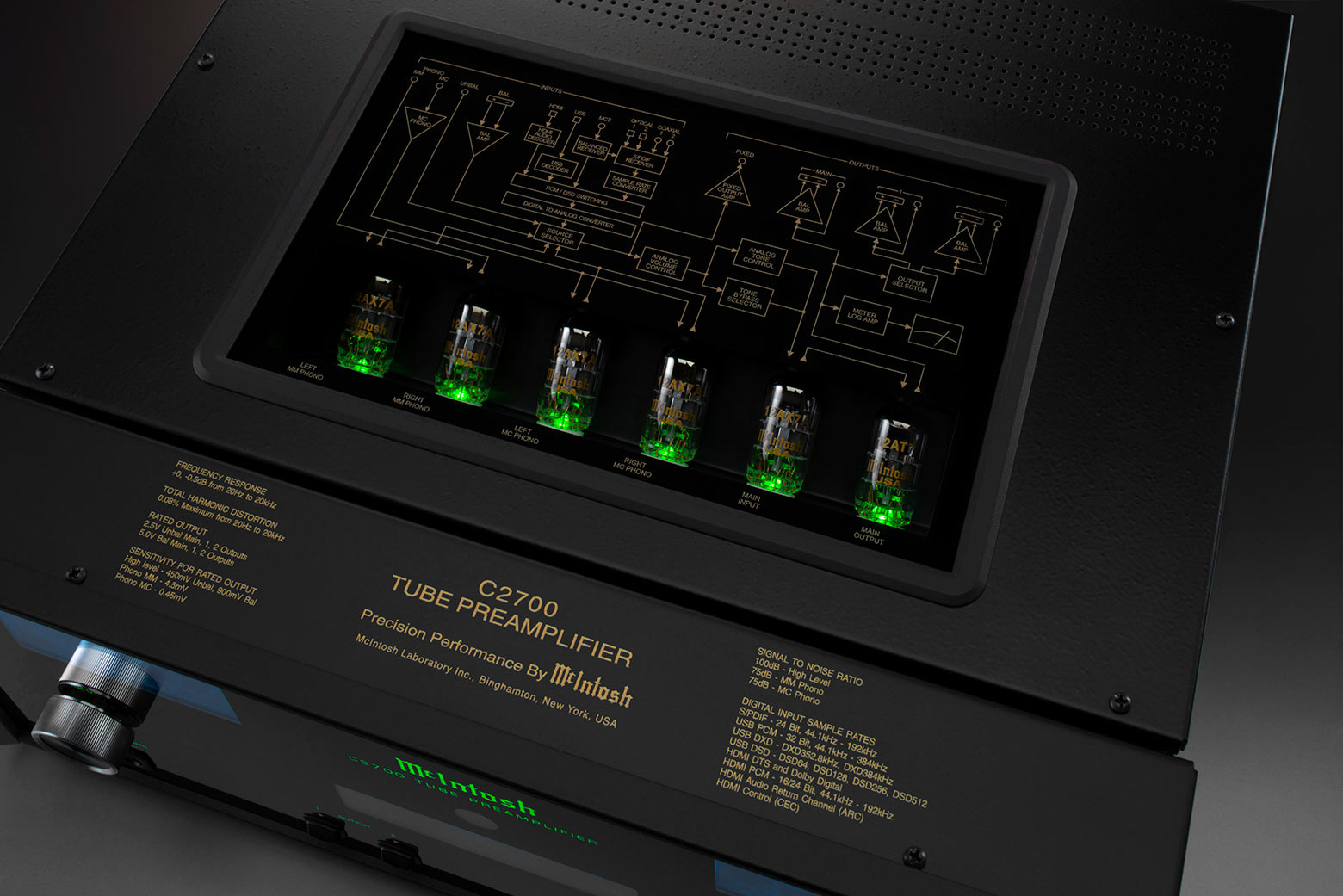

Following in a long line of revered McIntosh vacuum tube preamplifiers is the C2700 Tube Preamplifier. Using our well-established vacuum tube topology, the C2700 also features our advanced DA2 Digital Audio Module technology to combine cutting edge digital music capabilities with time tested vacuum tube performance.

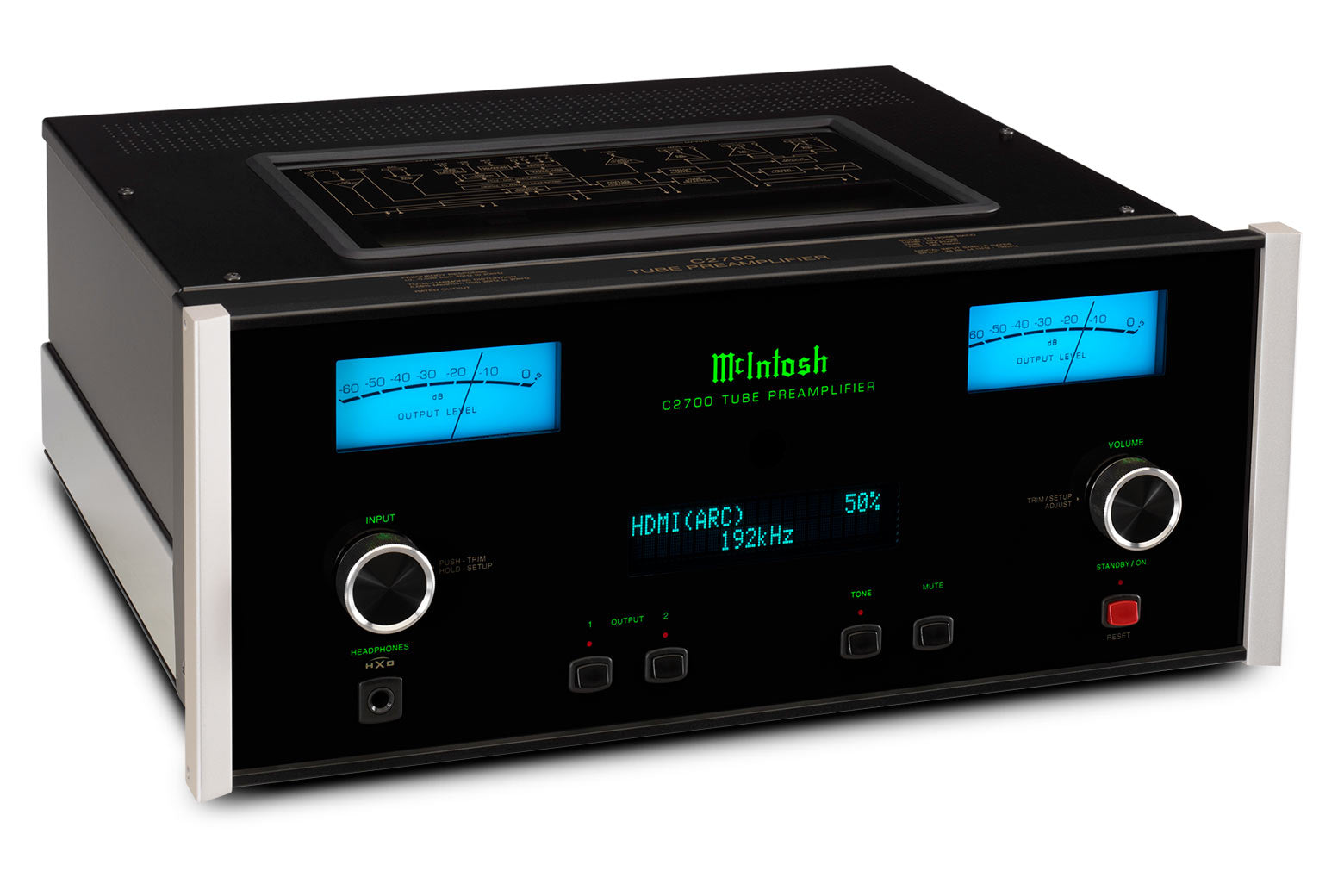

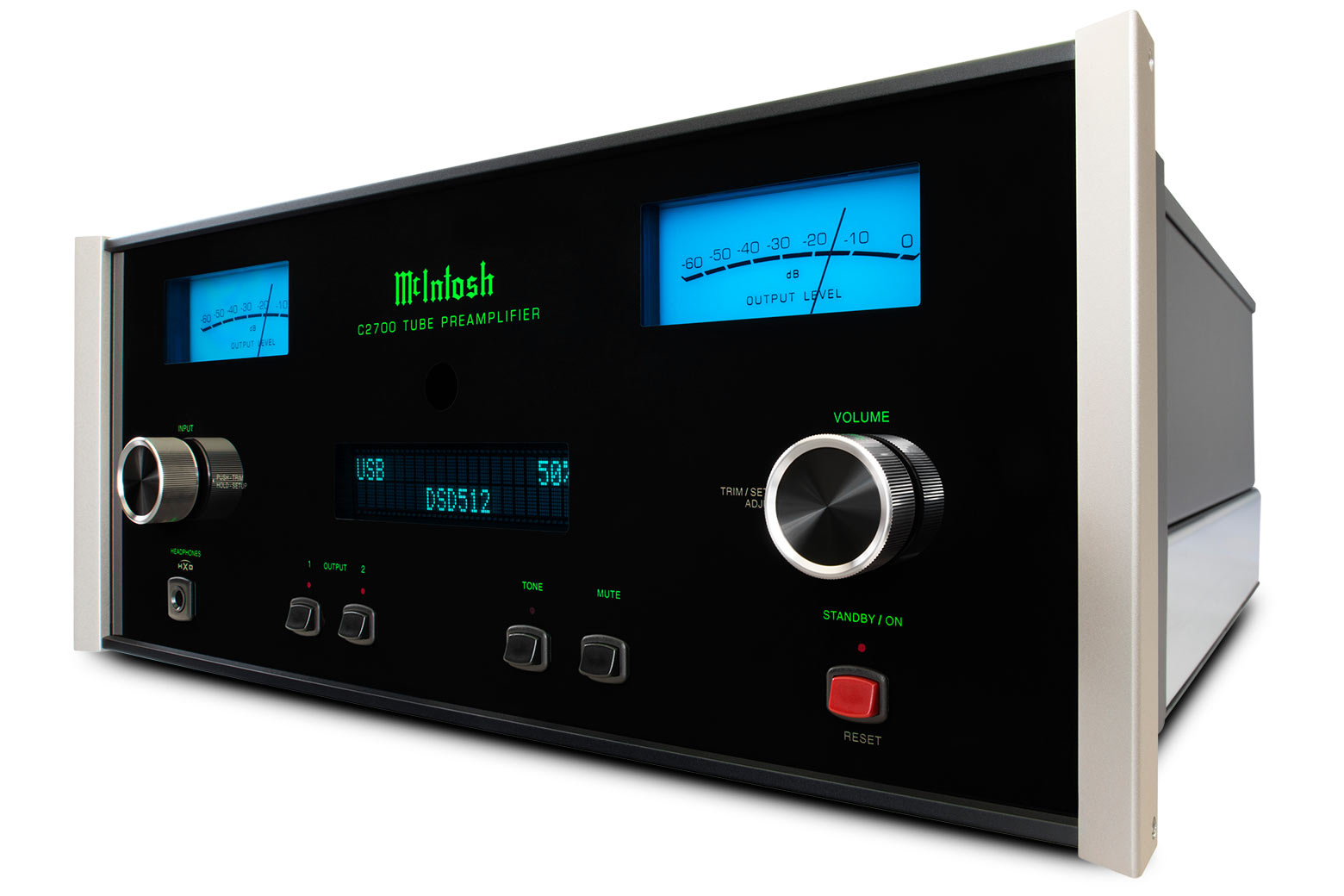

A worthy successor to our popular DA1 Digital Audio Module, the DA2 features an expanded set of capabilities. The DA2 offers 7 digital inputs including all the same connections found on the DA1 (2 coaxial, 2 optical, 1 USB and 1 MCT) plus a new audio-only HDMI Audio Return Channel (ARC)1connection. TVs with a compatible HDMI (ARC) output can be connected to the C2700 to enjoy your TV’s sound through your home audio system. Popular multi-channel audio formats from Dolby®and DTS®are supported and will be expertly converted to 2-channel audio for proper playback. The TV remote can control the power and volume of the C2700 when CEC communication is enabled in both the preamplifier and the TV. Besides these new HDMI (ARC) features found in the DA2, its USB input has increased DSD playback support up to DSD512 compared to the DSD256 limit of the DA1.
"The C2700, across the board from its phono stage, to the headphone output, to the DA2, all sound phenomenal... To say the C2700 is far greater in value than the sum of its parts is a vast understatement. The C2700 is a bargain in a world full of over priced, under performing audio products." –Positive Feedback
The DA2 is powered by a next generation, audiophile-grade, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC) that has improvements in both dynamic range and total harmonic distortion compared to the DA1. The coax and optical inputs in the DA2 can decode digital music up to 24-bit/192kHz for playback of high resolution audio. Finally, the DA2 has a McIntosh exclusive MCT input that offers a secure DSD connection to any of our MCT series of SACD/CD Transports to deliver the best possible sound quality of the high definition audio from your SACDs.

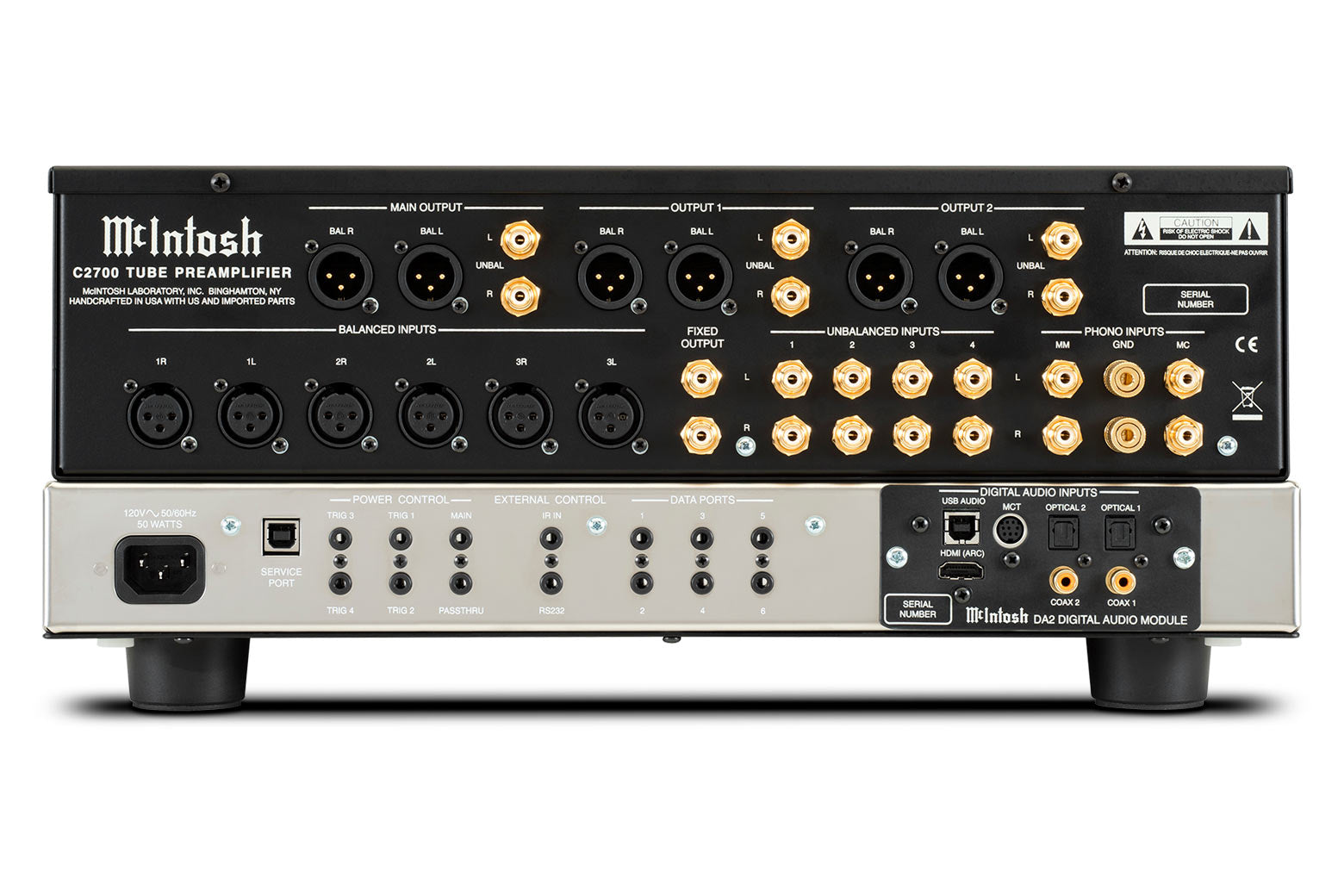

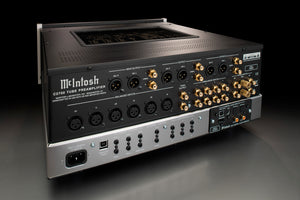

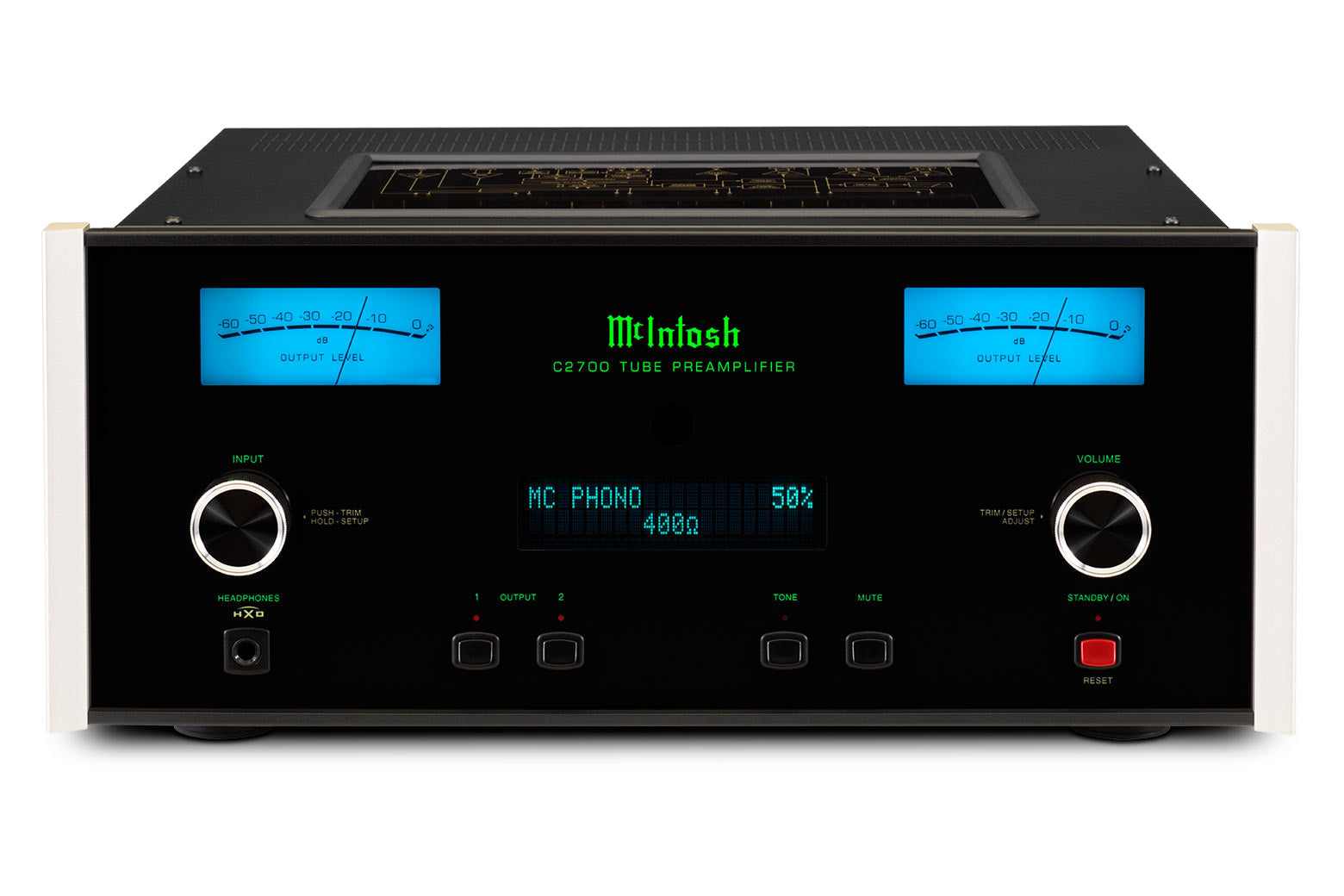

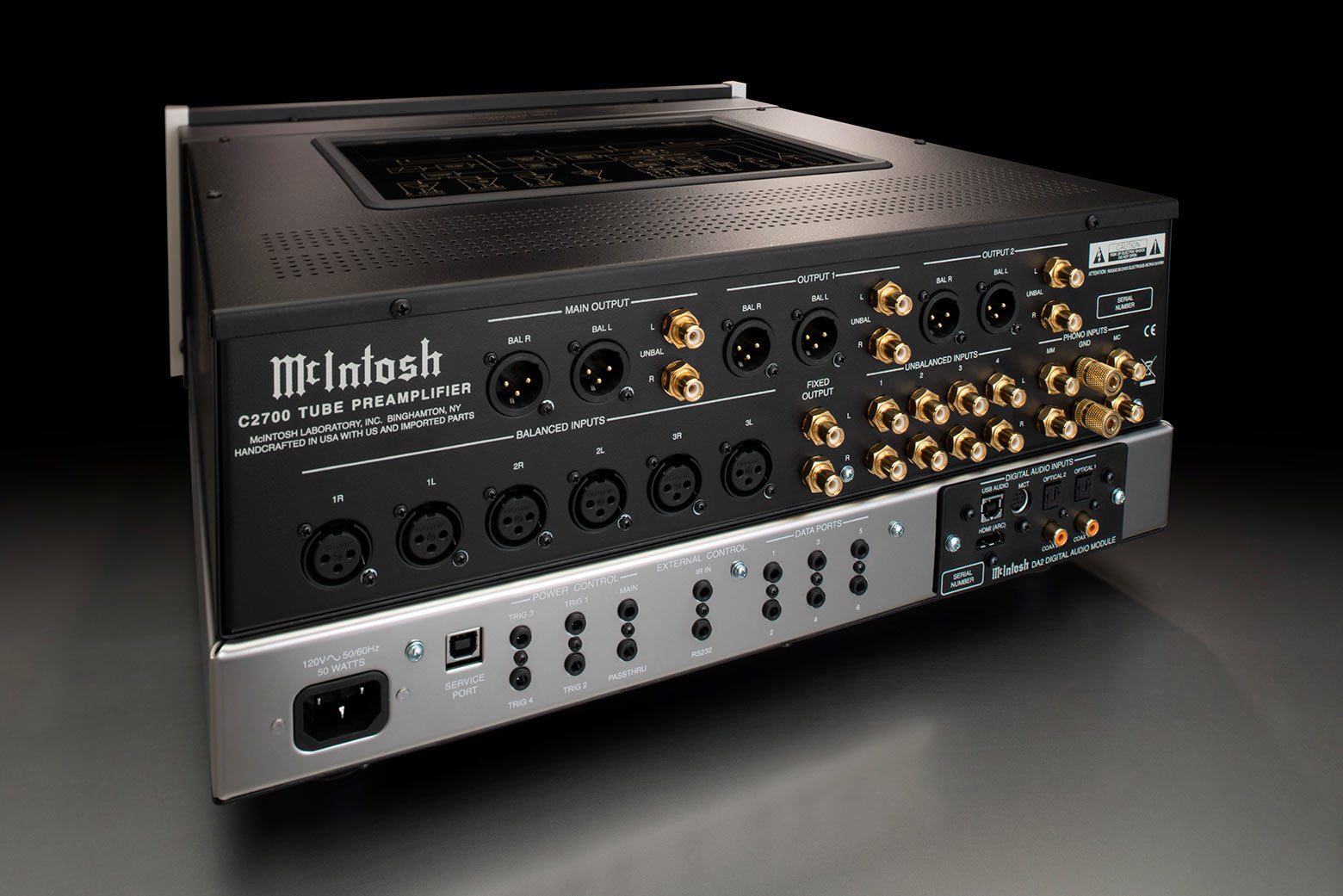

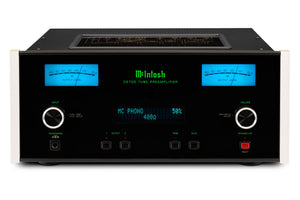

For analog music, the C2700 has 9 inputs comprised of 3 balanced connections, 4 unbalanced connections, along with 1 Moving Coil and 1 Moving Magnet phono inputs for connecting a turntable or two. With a total of 16 inputs, the C2700 has a virtually infinite number of inputs to connect all your music sources. Our dual chassis design keeps the analog and digital sections separate to prevent signal corruption. Outputs include 3 variable balanced and 3 variable unbalanced plus 1 fixed unbalanced connection.
Bass and treble tone controls are included and can be adjusted in 2dB increments. The ¼” headphone jack is powered by our High Drive Headphone Amplifier which can power almost any pair of headphones; Headphone Crossfeed Director (HXD®) is included and brings an added dimension to your personal listening session when activated. Home Theater Pass Through allows the C2700 to be seamlessly integrated into your home theater system. Power Control ports let you easily turn other connected McIntosh components on and off, while the Data Ports can send remote control commands to connected source components.
The C2700 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for a superior customer experience.
Number of Channels
Total Harmonic Distortion
+0, -0.5dB from 20Hz to 20kHz +0, -3dB from 15Hz to 100kHz
Maximum Volts Out (Balanced / Unbalanced)
16V RMS / 8V RMS
Sensitivity High Level (Balanced / Unbalanced)
900mV / 450mV
Sensitivity Phono (Moving Coil)
Sensitivity Phono (Moving Magnet)
Signal To Noise Ratio (High Level)
Signal To Noise Ratio (Moving Coil)
Signal To Noise Ratio (Moving Magnet)
Voltage Gain (High Level)
Voltage Gain (Moving Coil)
Voltage Gain (Moving Magnet)
Input Impedance (Balanced / Unbalanced)
44K ohm, 22K ohm
Phono Input Moving Coil
Phono Input Moving Magnet
Upgradeable Digital Audio Module
Digital Coaxial Input
Digital Optical Input
Digital MCT (DIN) Input
Digital USB Input
HDMI (ARC) Input
Digital AES/EBU Input
Balanced Fixed Output
Balanced Variable Output
Unbalanced Fixed Output
Unbalanced Variable Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
