***Please note that these come as a pair.
The Zions are built in a way few modern amplifiers employ. This is not due to intrinsic inferiority, but rather it is impossible to rush and is incredibly expensive to produce. Some of the most familiar tube amps ever produced utilize this method, including; HK, Leek, Quad, & Western Electric. These amplifiers demand to be played and built to last a lifetime.
They are very closely based on the Harmon Kardon Citation V.
These are monoblock versions of the Citation V with tube rectification.

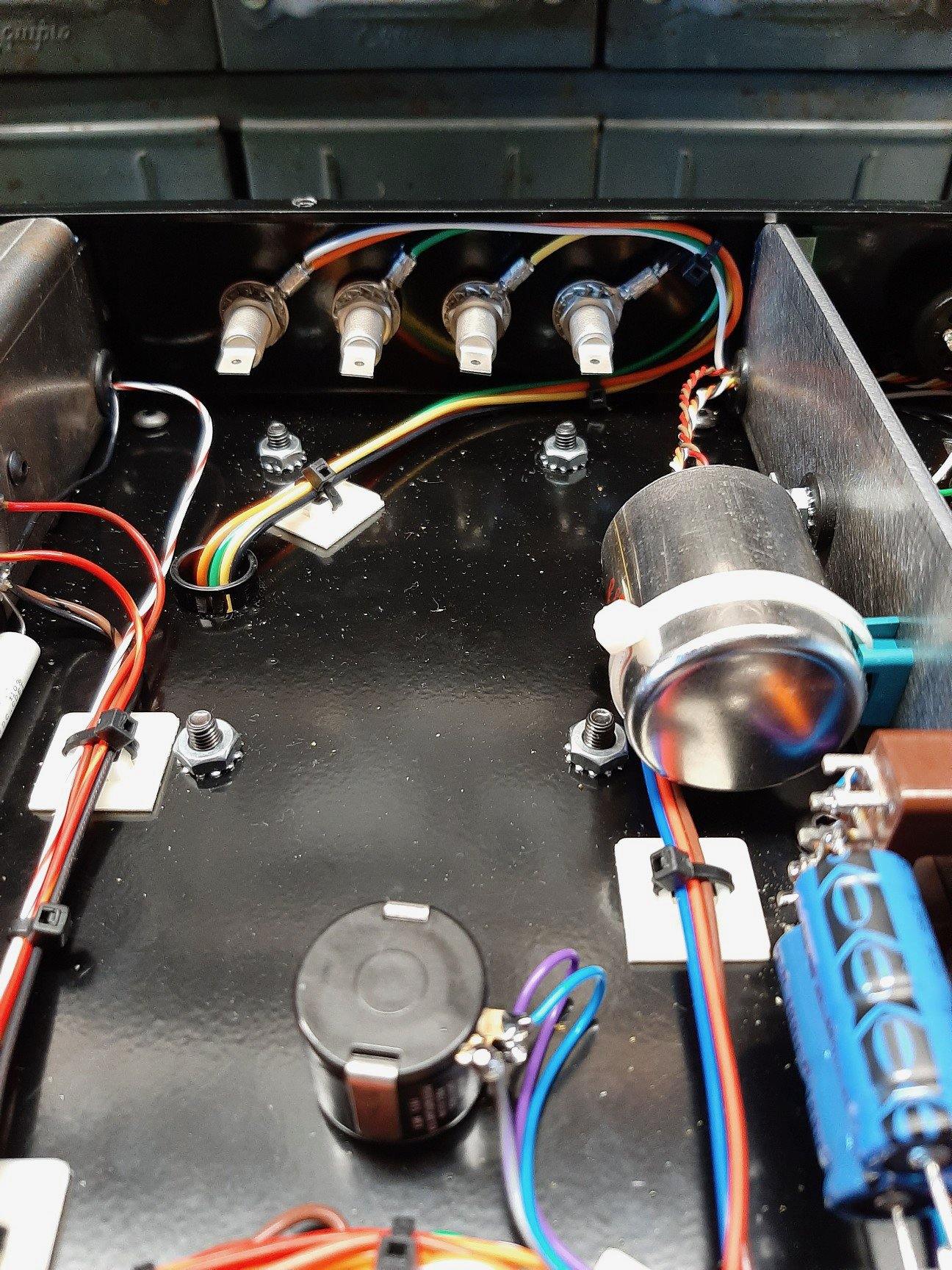

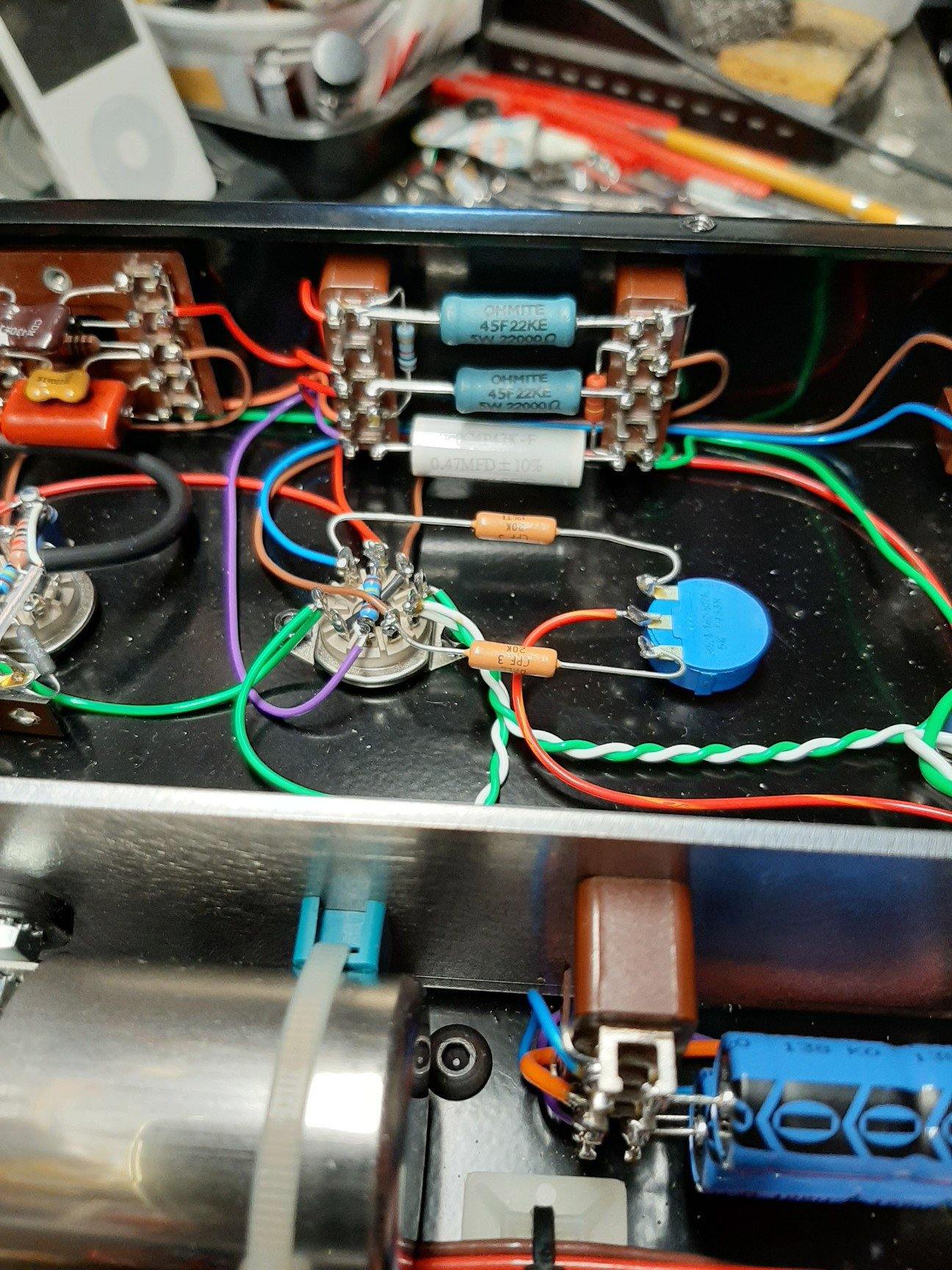

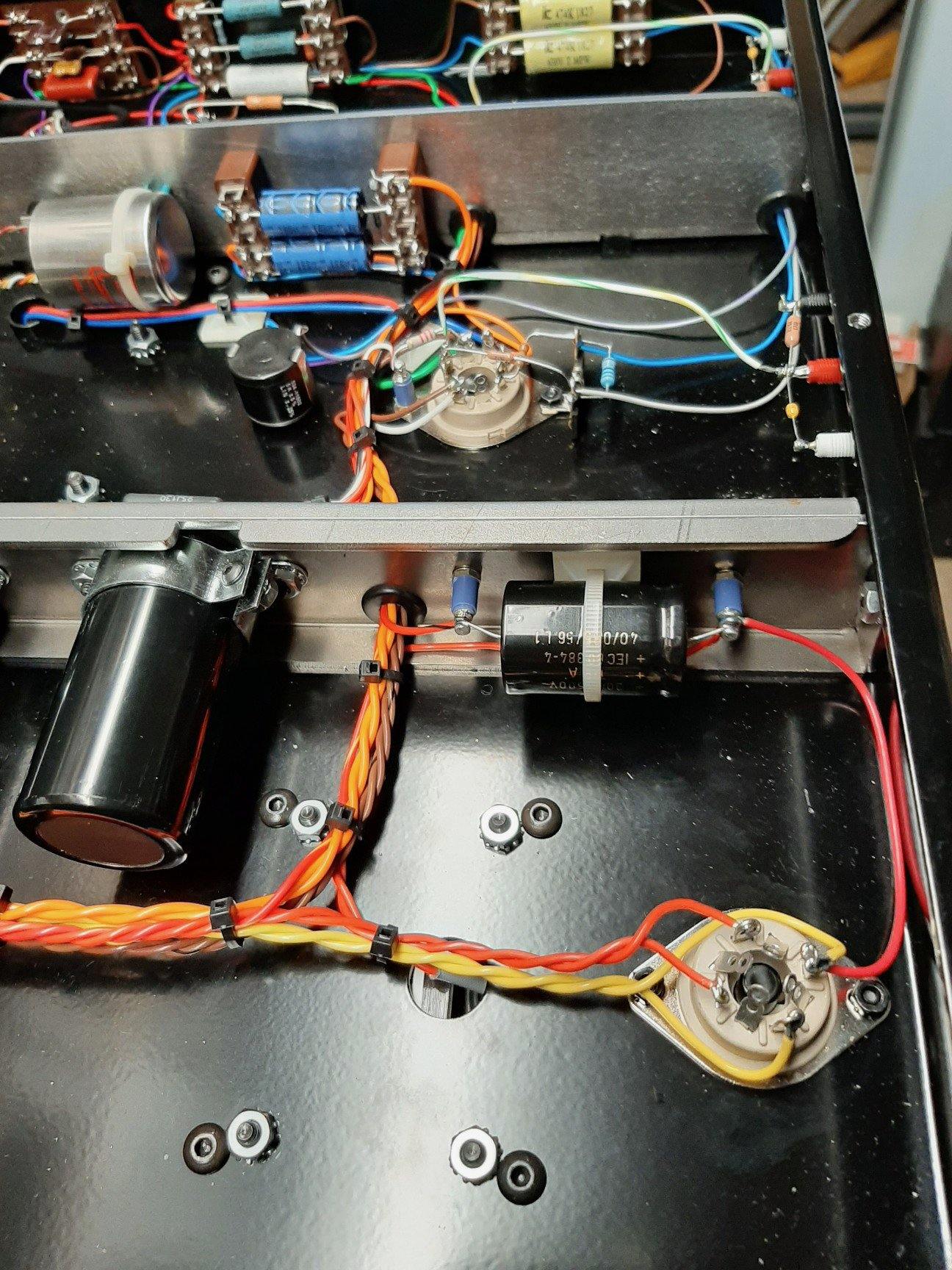

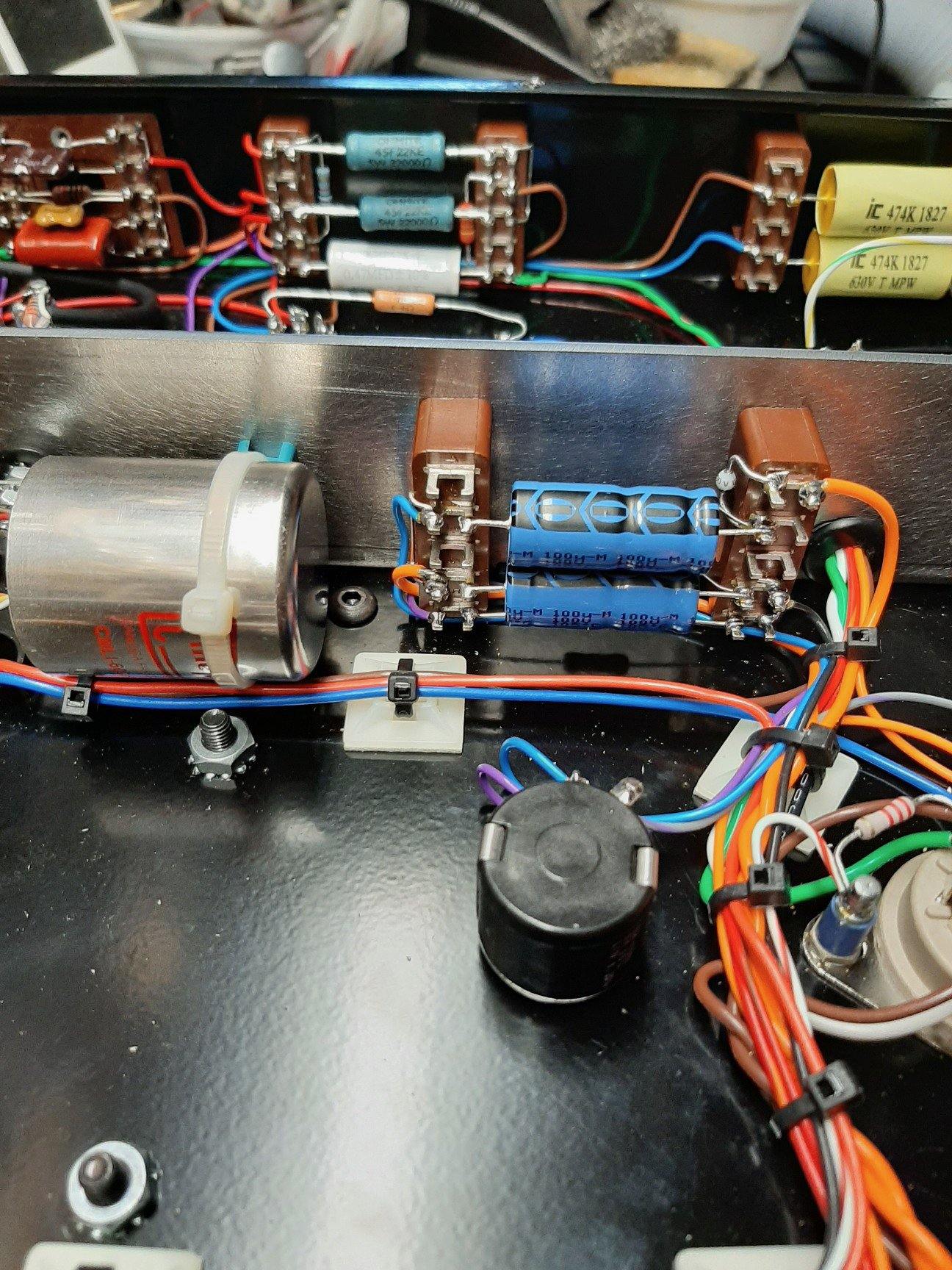

The amps are wired with turret board and point to point, just like the originals.

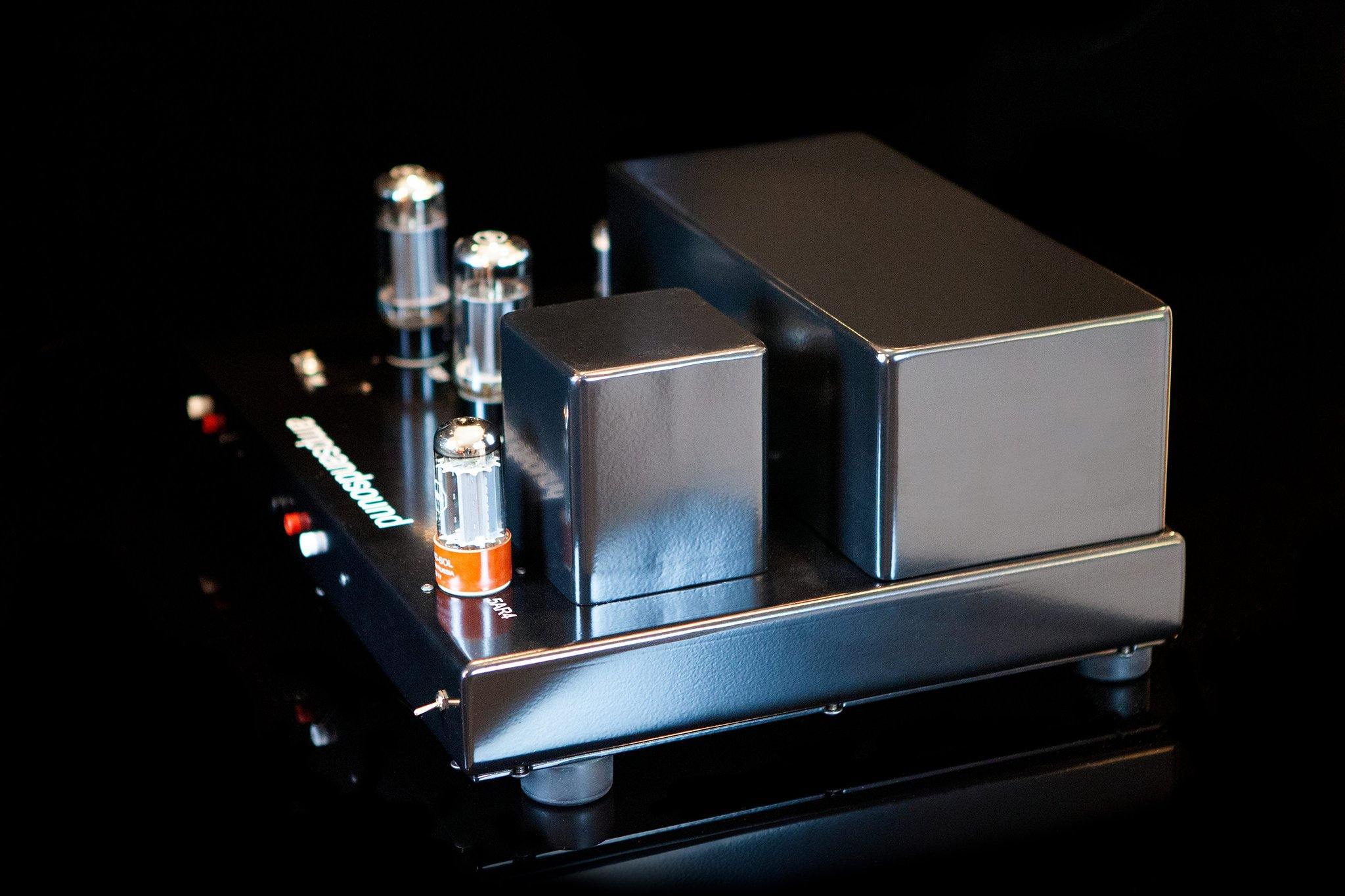

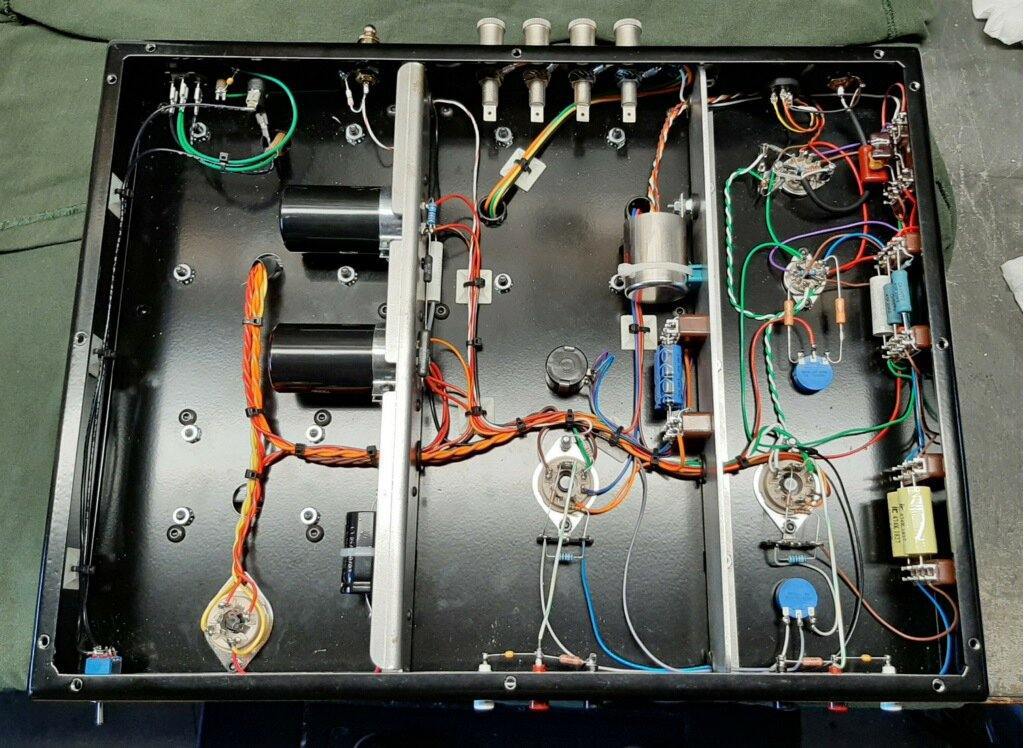

Chassis work is the area that consumed development. We wanted the most rigid, robust chassis we could produce. As a result, the whole chassis is 12 gauge cold rolled steel. The amps include two mid braces. These not only allow for mounting of components but mechanically tie the top to the bottom plate. The chassis is rigid enough to be stood on without bending or deflection. The transformer's covers are of the same material and have a rib-plate to increase rigidity and allow for ease of mounting. All metalwork is powder-coated. Chassis and covers excluding parts are approx 25lbs per amp.
Transformers are one of the most special aspects of the amps.

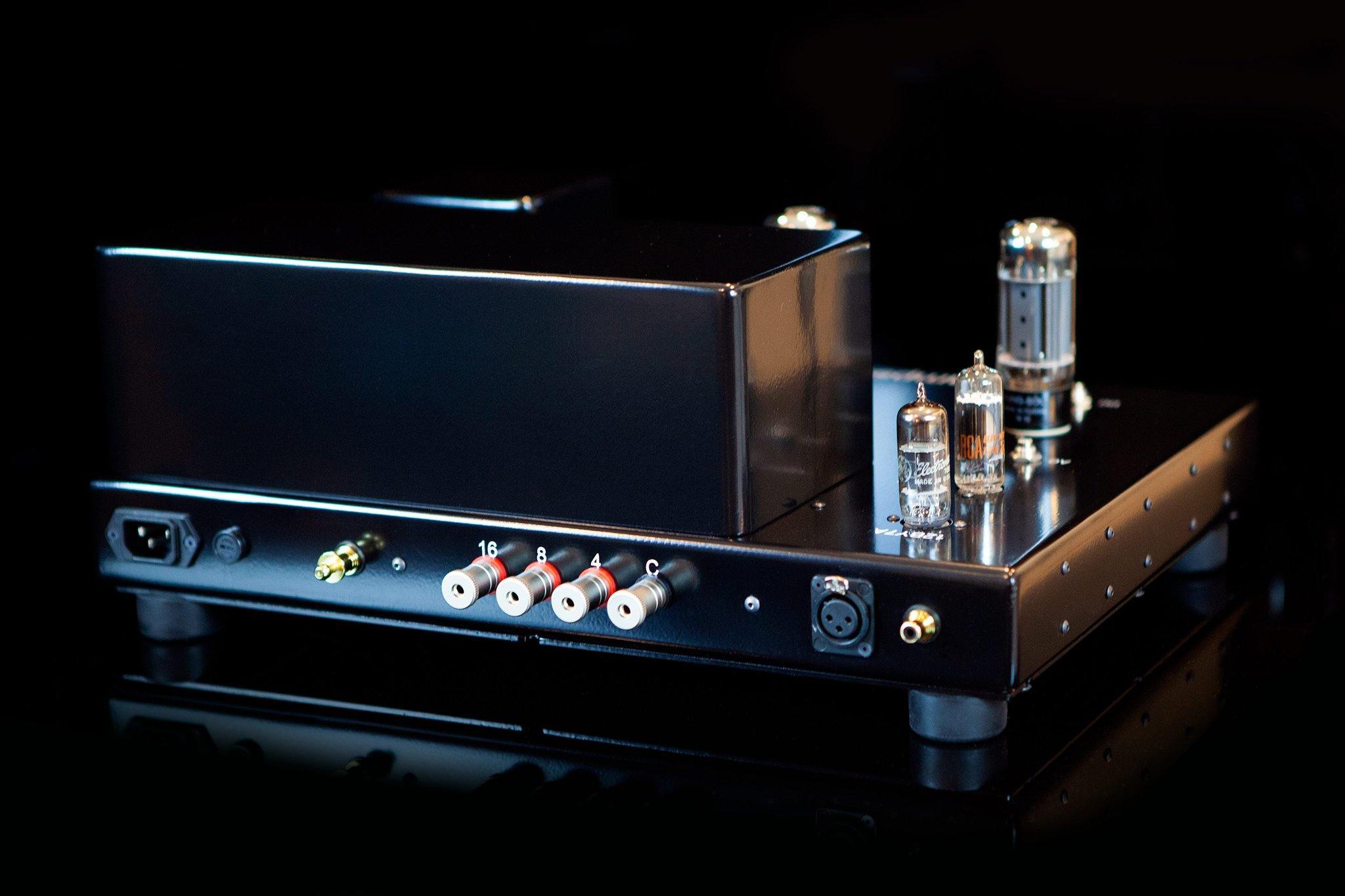

We include input transformers for XLR to RCA conversion.
All transformers are 200% over spec'd. Filaments are spec'd at 8amps, and output transformers are rated for 60 watts.
The bench report is fantastic, 38 watts RMS
Noise is 2mV
Ultra-wide bandwidth; 4hz to 115khz @ 1 watt
10hz to 110hz @ 10 watts
These amps are built in the same manner the original HK Citations were manufactured. They are over spec'd in every manner and intended to last a lifetime. Just like the originals, they are quiet, true to source, and have incredible frequency extension. They feel much more powerful than their output in large measure to their low-frequency extension. The sonic signature is true to source with mid-range warmth. They convey all detail present to the source input.

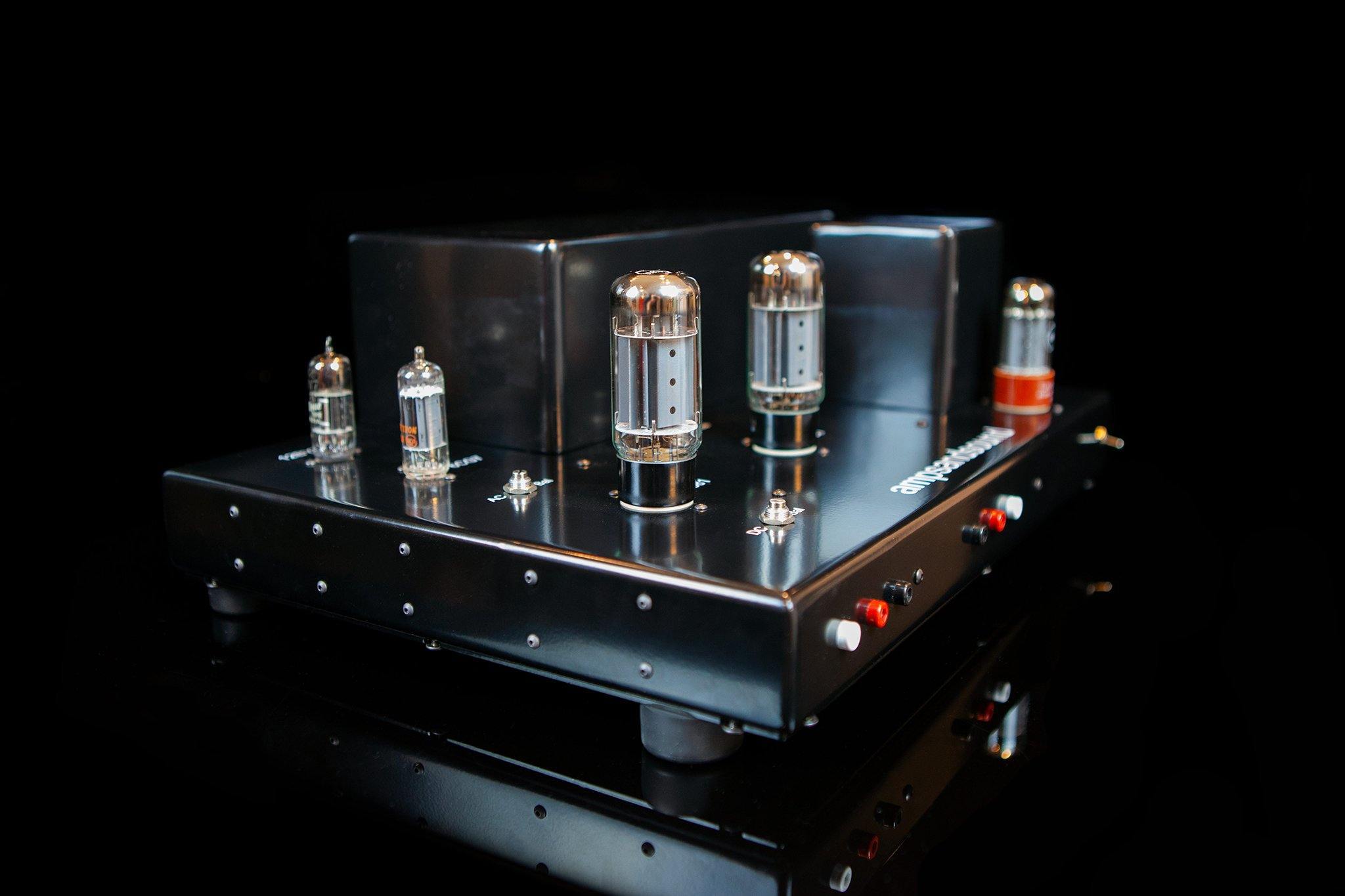

These are 17x13 chassis and shipping in 2 large Pelican style cases.
Power and Noise specs are dependent on tube selection.
